NTCS0603E3124SMT, NTCS0805E3104SMT Datasheet - Vishay

NTCS0603E3124SMT SMD NTC Thermistors

SMD NTC thermistor 0805 Ni barrier SMD NTC thermistor 0603 Ni barrier SMD NTC thermistor 0402 Ni barrier DIMENSIONS in millimeters WT PARAMETER Case 0402 L1 L 1 ± 0.15 L L2 W 0.5 ± 0.15 T 0.5 ± 0.15 L1, L3 min. 0.1 L3 L2 min. 0.3 Note * Non-dimensioned details do not affect the .
www.vishay.com NTCSE3SMT Vishay BCcomponents SMD NTC Thermistors with Enhanced Stability QUICK REFERENCE DATA PARAMETER VALUE Resistance value at 25 °C 100K to 210K Tolerance on R25-value B25/85-value Tolerance on B25/85-value Maximum power dissipation (by case) 1 3590 ±1 70 (0402), 120 (0603), 210 (0805) Response time (63.2 %) 25 °C to 85 °C still air (for info by case) 4 (0402), 6 (0603), 10 (0805) Dissipation factor  in still air (for each case) 2 (0402), 3 (0603), 3.5 (0805) .

NTCS0603E3124SMT Features

* Monolithic SMD with nickel barrier and pure tin

* Wide temperature range from -40 °C to +125 °C

* Enhanced stability throughout the lifetime (maximum variation of initial R25 °C of ± 0.5 % after 10 000 hours at any temperature)

* Ideal for wave and reflow soldering

NTCS0805E3104SMT-Vishay.pdf

This datasheet PDF includes multiple part numbers: NTCS0603E3124SMT, NTCS0805E3104SMT. Please refer to the document for exact specifications by model.

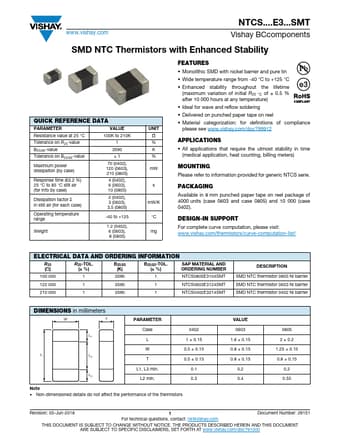

NTCS0603E3124SMT Datasheet Preview Page 2 NTCS0603E3124SMT Datasheet Preview Page 3
