NTCS0603E3153, NTCS0603E3202 - Glass Protected NTC Thermistors

Vishay

The NTCS0603E3153 by Vishay is a Glass Protected NTC Thermistors. Below is the official datasheet preview.

📥 Download Datasheet

NTCS0603E3153 Glass Protected NTC Thermistors by Vishay - Datasheet Preview — Official preview page of the NTCS0603E3153 Glass Protected NTC Thermistors datasheet (Vishay).

Datasheet Details

Part number	NTCS0603E3153, NTCS0603E3202
Manufacturer	Vishay
File Size	102.76 KB
Description	Glass Protected NTC Thermistors
Datasheet	NTCS0603E3202-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: NTCS0603E3153, NTCS0603E3202. Please refer to the document for exact specifications by model.

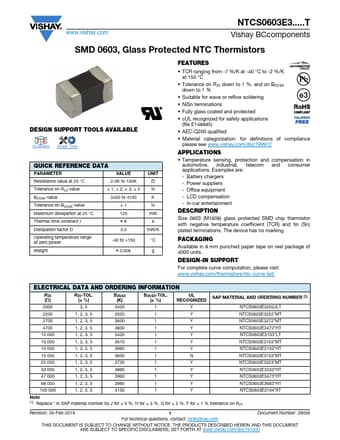

Additional preview pages of the NTCS0603E3153 datasheet.

NTCS0603E3153 Product details

Features

TCR ranging from - 7 %/K at - 40 °C to - 2 %/K at 150 °C.
Tolerance on R25 down to 1 %, and on B25/85 down to 1 %.
Suitable for wave or reflow soldering.
NiSn terminations.
Fully glass coated and protected.
cUL recognized for safety.
