PTV20B - Surface Mount Power Voltage-Regulating Diodes

Product Overview

Vishay

Part number	PTV20B
Manufacturer	Vishay
File Size	82.05 KB
Description	Surface Mount Power Voltage-Regulating Diodes
Datasheet	PTV20B Datasheet
Note	This datasheet PDF includes multiple part numbers: PTV20B, PTV3.9B. Please refer to the document for exact specifications by model.

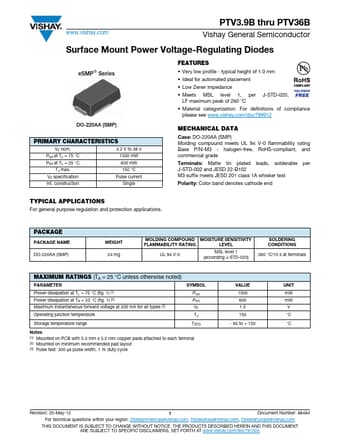

Additional preview pages of the PTV20B datasheet.

Very low profile - typical height of 1.0 mm.
Ideal for automated placement.
Low Zener impedance.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.
