PTV24B, PTV3.9B, Surface Mount Power Voltage-Regulating Diodes

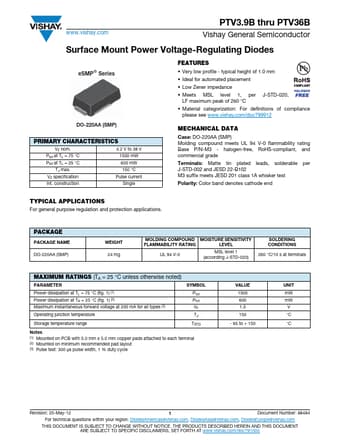

www.vishay.com PTV3.9B thru PTV36B Vishay General Semiconductor Surface Mount Power Voltage-Regulating Diodes eSMP® Series DO-220AA (SMP) PRIMARY.

PTV3.9B-Vishay.pdf

PTV24B Datasheet Preview — This datasheet PDF includes multiple part numbers: PTV24B, PTV3.9B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PTV24B, PTV3.9B

Manufacturer:

Vishay ↗

File Size:

82.05 KB

Description:

Surface Mount Power Voltage-Regulating Diodes

Note:

This datasheet PDF includes multiple part numbers: PTV24B, PTV3.9B.
Please refer to the document for exact specifications by model.

Features

* Very low profile - typical height of 1.0 mm
* Ideal for automated placement
* Low Zener impedance
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 MECHA

Applications

* For general purpose regulation and protection applications. PACKAGE PACKAGE NAME DO-220AA (SMP) WEIGHT 24 mg MOLDING COMPOUND MOISTURE SENSITIVITY FLAMMABILITY RATING LEVEL UL 94 V-0 MSL level 1 (according J-STD-020) SOLDERING CONDITIONS 260 °C/10 s at terminals MAXIMUM RATINGS (TA = 25 °C
