RCS0402e3 - High Power Thick Film Chip Resistors

Vishay

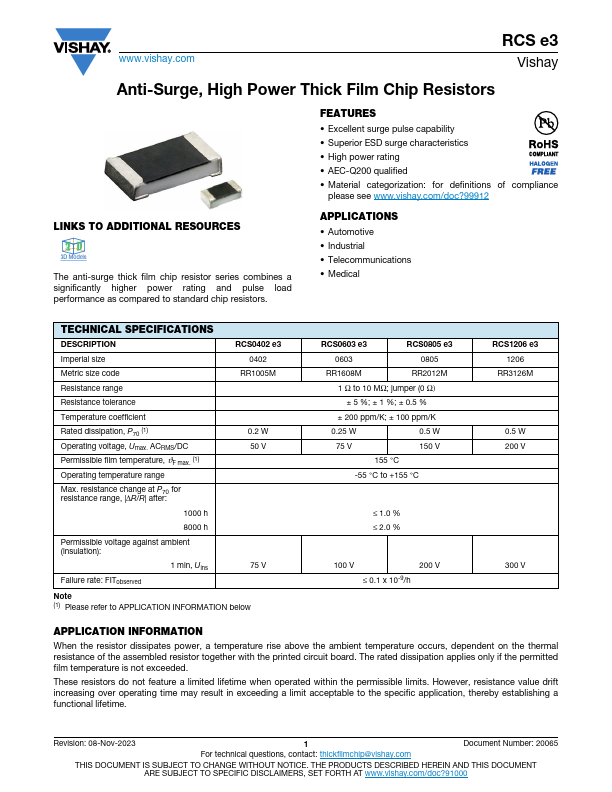

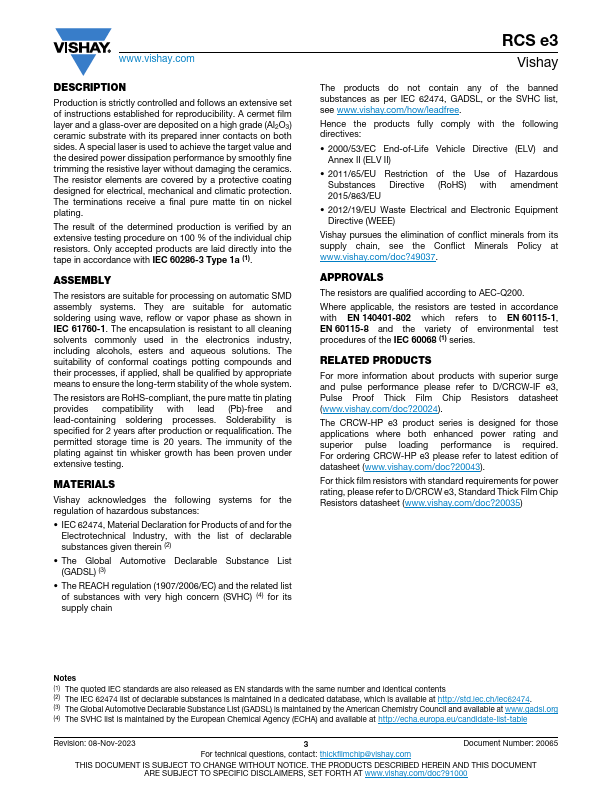

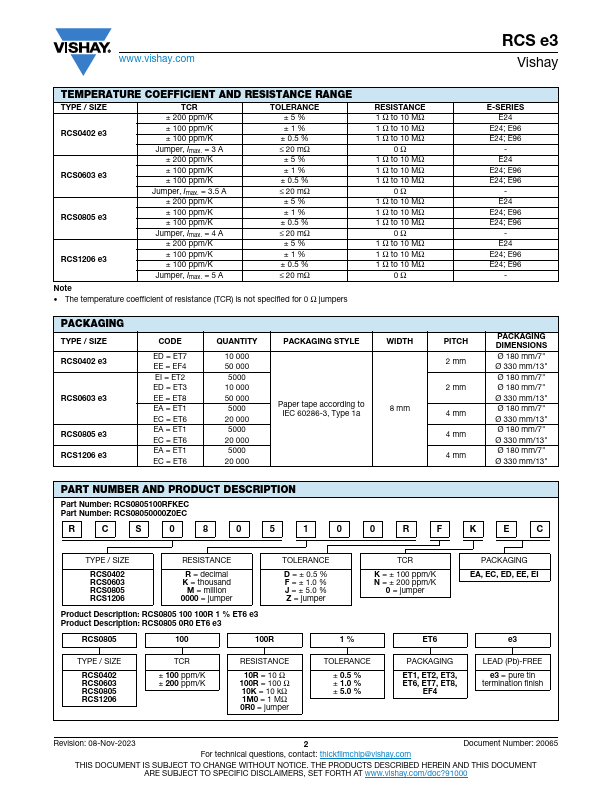

RCS0402e3 Datasheet Preview — Preview of RCS0402e3 PDF

Datasheet Details

Part number	RCS0402e3
Manufacturer	Vishay ↗
File Size	137.96 KB
Description	High Power Thick Film Chip Resistors
Datasheet	RCS0402e3-Vishay.pdf

RCS0402e3 Product details

Description

RCS0402 e3 Imperial size 0402 Metric size code RR1005M Resistance range Resistance tolerance Temperature coefficient Rated dissipation, P70 (1) Operating voltage, Umax.ACRMS/DC Permissible film temperature, ϑF max.(1) Operating temperature range 0.2 W 50 V Max.resistance change at P70 for resistance range, |ΔR/R| after: 1000 h 8000 h Permissible voltage against ambient (insulation): Failure rate: FITobserved 1 min, Uins 75 V Note (1) Please refer to APPLICATION INFORMATION b

Features

Excellent surge pulse capability.
Superior ESD surge characteristics.
High power rating.
AEC-Q200 qualified.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
