RCS0603e3, RCS0402e3 Datasheet - Vishay

RCS0603e3 High Power Thick Film Chip Resistors

RCS0402 e3 Imperial size 0402 Metric size code RR1005M Resistance range Resistance tolerance Temperature coefficient Rated dissipation, P70 (1) Operating voltage, Umax. ACRMS/DC Permissible film temperature, ϑF max. (1) Operating temperature range 0.2 W 50 V Max. resistance change at P70 .

RCS0603e3 Features

* Excellent surge pulse capability

* Superior ESD surge characteristics

* High power rating

* AEC-Q200 qualified

* Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS

* Automotive

* Industrial

RCS0402e3-Vishay.pdf

This datasheet PDF includes multiple part numbers: RCS0603e3, RCS0402e3. Please refer to the document for exact specifications by model.

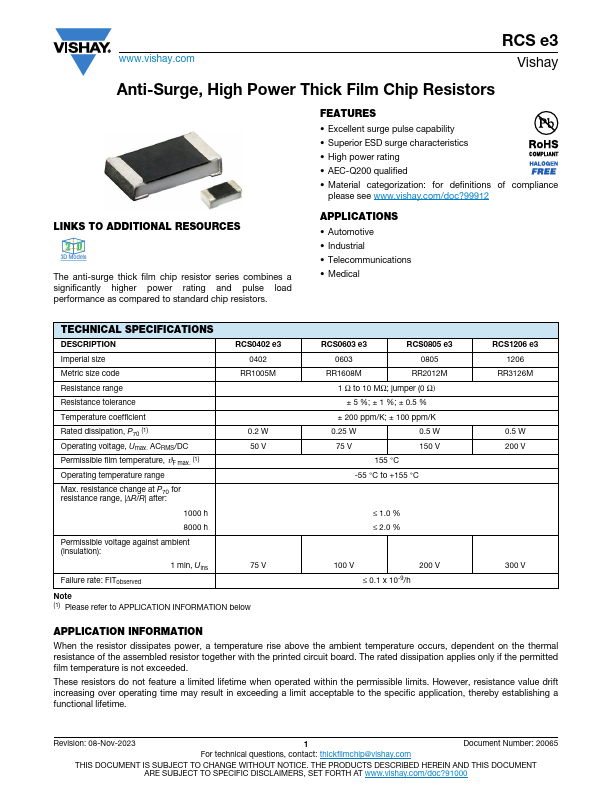

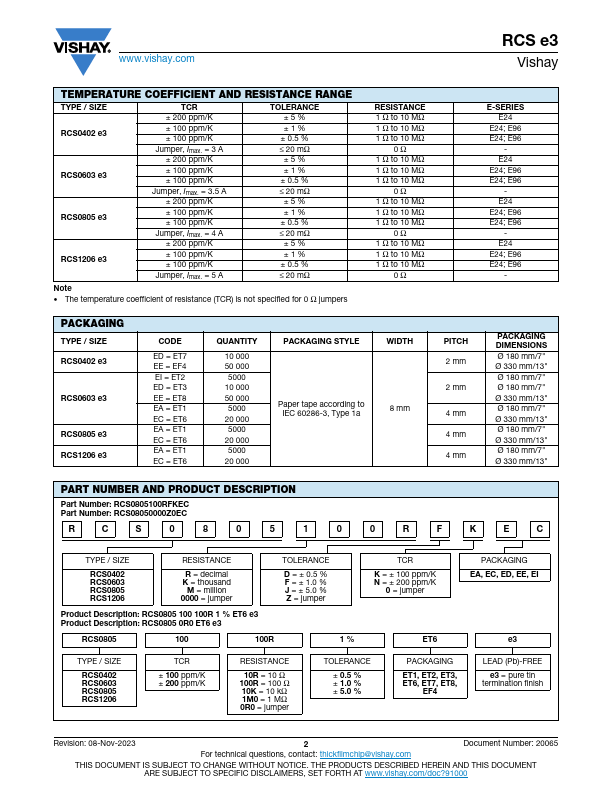

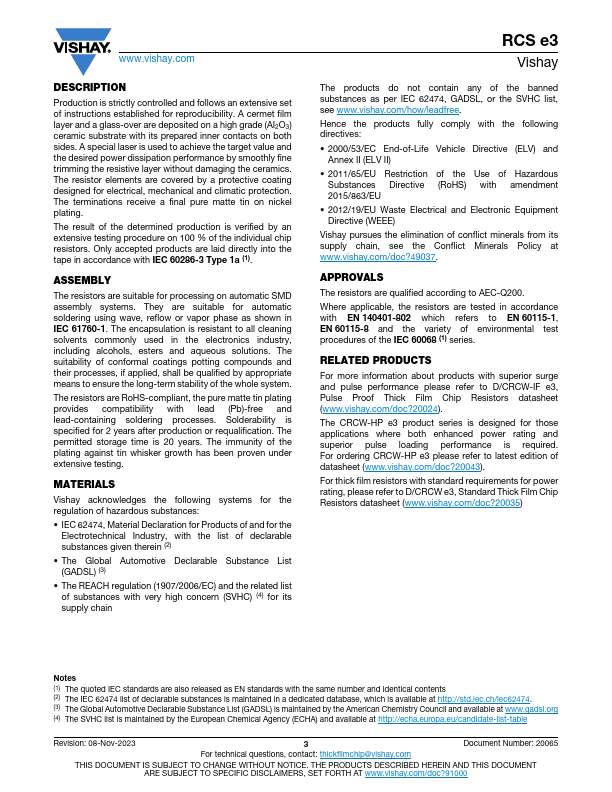

RCS0603e3 Datasheet Preview Page 2 RCS0603e3 Datasheet Preview Page 3

Datasheet Details

Part number:

RCS0603e3, RCS0402e3

Manufacturer:

Vishay ↗

File Size:

137.96 KB

Description:

High power thick film chip resistors.

Note:

This datasheet PDF includes multiple part numbers: RCS0603e3, RCS0402e3.
Please refer to the document for exact specifications by model.
