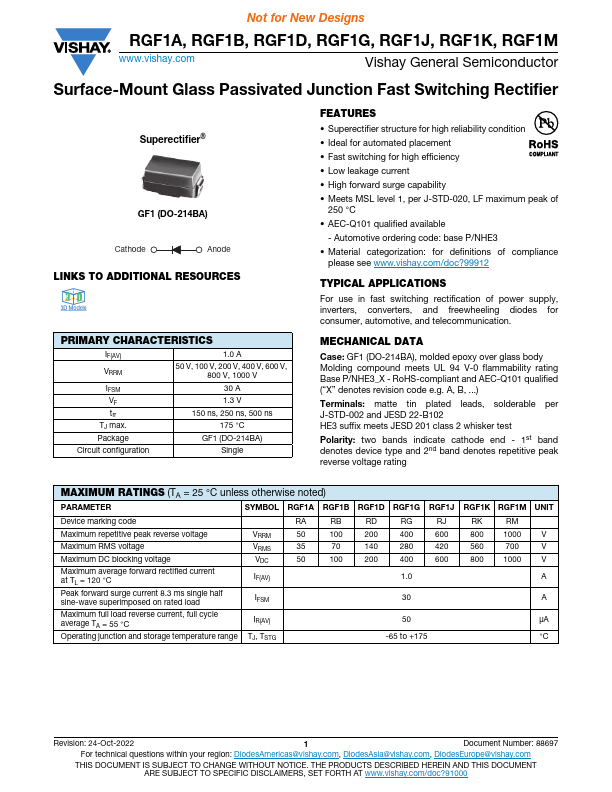

RGF1K, RGF1A - Surface-Mount Glass Passivated Junction Fast Switching Rectifier

Vishay

Datasheet Details

Part number	RGF1K, RGF1A
Manufacturer	Vishay ↗
File Size	85.89 KB
Description	Surface-Mount Glass Passivated Junction Fast Switching Rectifier
Datasheet	RGF1A-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: RGF1K, RGF1A. Please refer to the document for exact specifications by model.

Superectifier structure for high reliability condition.
Ideal for automated placement.
Fast switching for high efficiency.
Low leakage current.
High forward surge capability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 250 °C.
AEC-Q101 qualified available - Automotive ordering code: base P/NHE3.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
