RGP15B

Glass Passivated Junction Fast Switching Plastic Rectifier

RGP15B Features

* Superectifier structure for high reliability condition

* Cavity-free glass-passivated junction

* Fast switching for high efficiency

* Low leakage current, typical IR less than 0.1 μA

* High forward surge capability

* Solder dip 275 °C max. 10 s, per

RGP15B Datasheet (69.31 KB)

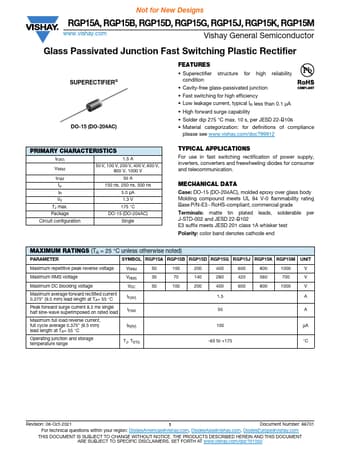

Preview of RGP15B PDF

Datasheet Details

Part number:

RGP15B

Manufacturer:

Vishay ↗

File Size:

69.31 KB

Description:

Glass passivated junction fast switching plastic rectifier.
Not for New Designs RGP15A, RGP15B, RGP15D, RGP15G, RGP15J, RGP15K, RGP15M www.vishay.com Vishay General Semiconductor Glass Passivated Junction F.
