RLR32C3302FPR6423, RLR05, Metal Film Resistors

ERL (Military RLR) www.vishay.com Vishay Dale Metal Film Resistors, Military/Established Reliability, MIL-PRF-39017 Qualified, Type RLR * Me.

RLR05_Vishay.pdf

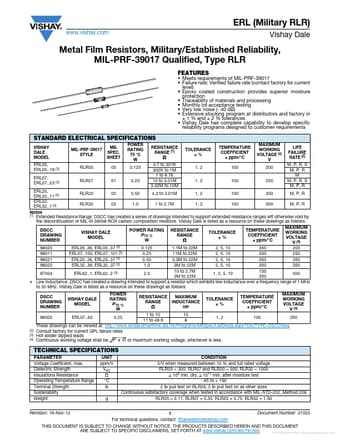

RLR32C3302FPR6423 Datasheet Preview — This datasheet PDF includes multiple part numbers: RLR32C3302FPR6423, RLR05. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RLR32C3302FPR6423, RLR05

Manufacturer:

Vishay ↗

File Size:

170.79 KB

Description:

Metal Film Resistors

Note:

This datasheet PDF includes multiple part numbers: RLR32C3302FPR6423, RLR05.
Please refer to the document for exact specifications by model.

Features

* STANDARD ELECTRICAL SPECIFICATIONS VISHAY DALE MODEL ERL05, ERL05..19 (3) ERL07, ERL07..23 (3) MIL-PRF-39017 STYLE RLR05 RLR07 MIL SPEC. SHEET 05 01 POWER RATING 70 °C W 0.125 0.25 RESISTANCE RANGE (1)  4.7 to 301K 302K to 1M 1 to 9.76 10 to 3.01M 3.02M to 10M TOLERANCE ±% 1, 2 1, 2 TEMPERATURE CO

Applications

* are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular produ
