RMPG06B, RMPG06A, Miniature Fast Switching Plastic Rectifier

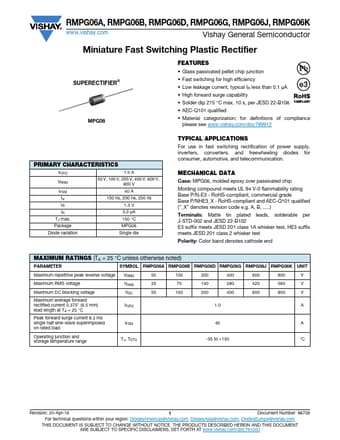

RMPG06A, RMPG06B, RMPG06D, RMPG06G, RMPG06J, RMPG06K www.vishay.com Vishay General Semiconductor Miniature Fast Switching Plastic Rectifier SUPERE.

RMPG06A-Vishay.pdf

RMPG06B Datasheet Preview — This datasheet PDF includes multiple part numbers: RMPG06B, RMPG06A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RMPG06B, RMPG06A

Manufacturer:

Vishay ↗

File Size:

74.46 KB

Description:

Miniature Fast Switching Plastic Rectifier

Note:

This datasheet PDF includes multiple part numbers: RMPG06B, RMPG06A.
Please refer to the document for exact specifications by model.

Features

* Glass passivated pellet chip junction
* Fast switching for high efficiency
* Low leakage current, typical IR less than 0.1 μA
* High forward surge capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* AEC-Q101 qualified
* Material cate

Applications

* For use in fast switching rectification of power supply, inverters, converters, and freewheeling diodes for consumer, automotive, and telecommunication. MECHANICAL DATA Case: MPG06, molded epoxy over passivated chip Molding compound meets UL 94 V-0 flammabil
