RMPG06G, RMPG06A Miniature Fast Switching Plastic Rectifier

RMPG06G Description

RMPG06A, RMPG06B, RMPG06D, RMPG06G, RMPG06J, RMPG06K www.vishay.com Vishay General Semiconductor Miniature Fast Switching Plastic Rectifier SUPERE.

RMPG06G Features

* Glass passivated pellet chip junction
* Fast switching for high efficiency
* Low leakage current, typical IR less than 0.1 μA
* High forward surge capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* AEC-Q101 qualified
* Material cate

RMPG06G Applications

* For use in fast switching rectification of power supply, inverters, converters, and freewheeling diodes for consumer, automotive, and telecommunication. MECHANICAL DATA Case: MPG06, molded epoxy over passivated chip Molding compound meets UL 94 V-0 flammabil

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RMPG06G, RMPG06A. Please refer to the document for exact specifications by model.

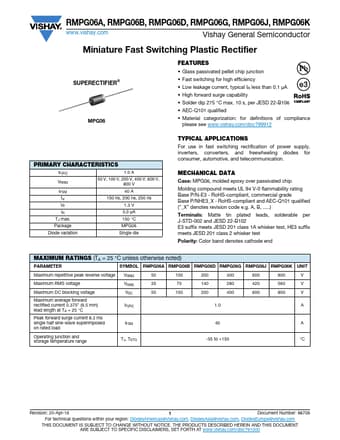

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RMPG06G, RMPG06A
Manufacturer
Vishay ↗
File Size
74.46 KB
Datasheet
RMPG06A-Vishay.pdf
Description
Miniature Fast Switching Plastic Rectifier
Note
This datasheet PDF includes multiple part numbers: RMPG06G, RMPG06A.
Please refer to the document for exact specifications by model.
