The S5M is Surface Mount Glass Passivated Rectifier designed by Vishay.

Product Overview

Vishay

📥 Download Datasheet

S5M Surface Mount Glass Passivated Rectifier by Vishay - Datasheet Preview — Datasheet preview – S5M

Datasheet Details

Part number	S5M
Manufacturer	Vishay
File Size	87.50 KB
Description	Surface Mount Glass Passivated Rectifier
Datasheet	S5M-Vishay.pdf

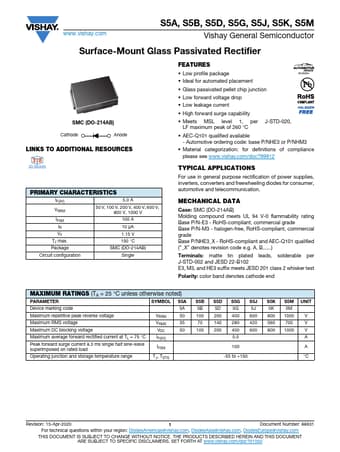

Additional preview pages of the S5M datasheet.

Product details

Features

Low profile package.
Ideal for automated placement.
Glass passivated pellet chip junction.
Low forward voltage drop.
Low leakage current Available.
High forward surge capability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3.
Material categorization: for definitions of compliance please see www. vishay. com/doc?9991.
