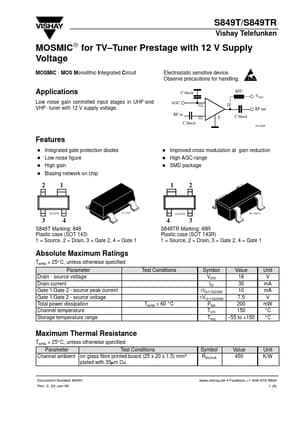

datasheet Preview Page 1 from Datasheet4u.com

S849TR, S849T MOS Monolithic Integrated Circuit

S849T/S849TR Vishay Telefunken MOSMIC® for TV *Tuner Prestage with 12 V Supply Voltage MOSMIC - MOS Monolithic Integrated Circuit Applications.

S849T-Vishay.pdf

S849TR Datasheet Preview — This datasheet PDF includes multiple part numbers: S849TR, S849T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S849TR, S849T

Manufacturer:

Vishay ↗

File Size:

134.18 KB

Description:

MOS Monolithic Integrated Circuit

Note:

This datasheet PDF includes multiple part numbers: S849TR, S849T.
Please refer to the document for exact specifications by model.

Features

* D Integrated gate protection diodes D Low noise figure D High gain D Biasing network on chip 21 D Improved cross modulation at gain reduction D High AGC-range D SMD package 1 2 94 9279 13 579 3 4 S849T Marking: 849 Plastic case (SOT 143) 1 = Source, 2 = Drain, 3 = Gate 2, 4 = Gate 1 94 9278
