SA14A, SA10 Transient Voltage Suppressors

SA14A Description

SA5.0 thru SA170CA Vishay General Semiconductor TRANSZORB® Transient Voltage Suppressors DO-204AC (DO-15) PRIMARY CHARACTERISTICS VWM PPPM PD IFSM .

SA14A Features

* Glass passivated chip junction
* Available in uni-directional and bi-directional
* 500 W peak pulse power capability with a 10/1000 µs waveform, repetitive rate (duty cycle): 0.01 %
* Excellent clamping capability
* Very fast response time
* Low incr

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SA14A, SA10. Please refer to the document for exact specifications by model.

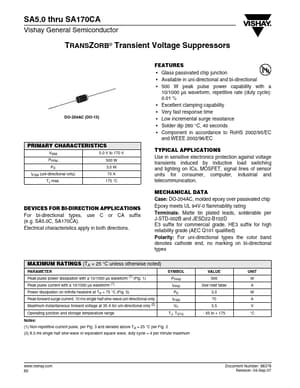

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA14A, SA10
Manufacturer
Vishay ↗
File Size
96.54 KB
Datasheet
SA10-Vishay.pdf
Description
Transient Voltage Suppressors
Note
This datasheet PDF includes multiple part numbers: SA14A, SA10.
Please refer to the document for exact specifications by model.
