SBLB1040CT - Dual Common Cathode Schottky Rectifier

Features

  • Power pack.
  • Guardring for overvoltage protection.
  • Low power loss, high efficiency.
  • Low forward voltage drop.
  • High forward surge capability.
  • High frequency operation.
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for D2PAK (TO-263AB) package).
  • Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for TO-220AB package).
  • AEC-Q101 qualified.
  • Material categorization: for definitions of.

📥 Download Datasheet

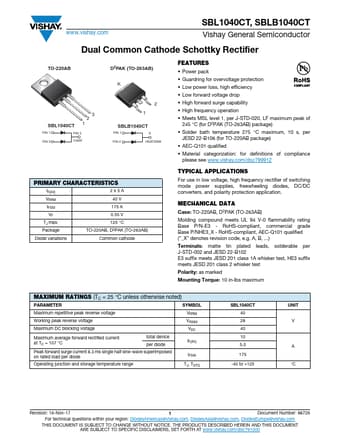

Datasheet preview – SBLB1040CT

Datasheet Details

Part number SBLB1040CT
Manufacturer Vishay
File Size 141.27 KB
Description Dual Common Cathode Schottky Rectifier
Datasheet download datasheet SBLB1040CT Datasheet
Additional preview pages of the SBLB1040CT datasheet.

📁 Similar Datasheet

  • SBLB10L25 - Low VF Schottky Barrier Rectifier (Vishay Siliconix)
  • SBLB10L30 - Schottky Barrier Rectifier (Vishay Siliconix)
  • SBLB1630CT - Dual Schottky Barrier Rectifier (Vishay Siliconix)
  • SBLB1630CT - Dual Schottky Barrier Rectifiers (GOOD-ARK)
  • SBLB1640CT - Dual Schottky Barrier Rectifier (Vishay Siliconix)
  • SBLB1640CT - Dual Schottky Barrier Rectifiers (GOOD-ARK)
  • SBLB030CT - Schottky Barrier Rectifiers (GOOD-ARK Electronics)
  • SBLB040CT - Schottky Barrier Rectifiers (GOOD-ARK Electronics)
  • SBLB20100CT - Schottky Barrier Rectifier (GME)
  • SBLB2030CT - Schottky Barrier Rectifier (GME)
Other Datasheets by Vishay
  • SBLB2030CT - Dual Common Cathode Schottky Rectifier
  • SBLB2040CT - Dual Common Cathode Schottky Rectifier
  • SBLB8L40 - Schottky Barrier Rectifier
  • SBL1030 - Schottky Barrier Rectifier
  • SBL1030CT - Dual Common Cathode Schottky Rectifier
  • SBL1040 - Schottky Barrier Rectifier
  • SBL1040CT - Dual Common Cathode Schottky Rectifier
  • SBL2030CT - Dual Common Cathode Schottky Rectifier

Full PDF Text Transcription

Click to expand full text
www.vishay.com SBL1040CT, SBLB1040CT Vishay General Semiconductor Dual Common Cathode Schottky Rectifier TO-220AB D2PAK (TO-263AB) K SBL1040CT 3 2 1 PIN 1 PIN 2 PIN 3 CASE 2 1 SBLB1040CT PIN 1 K PIN 2 HEATSINK PRIMARY CHARACTERISTICS IF(AV) 2x5A VRRM IFSM 40 V 175 A VF 0.55 V TJ max.
