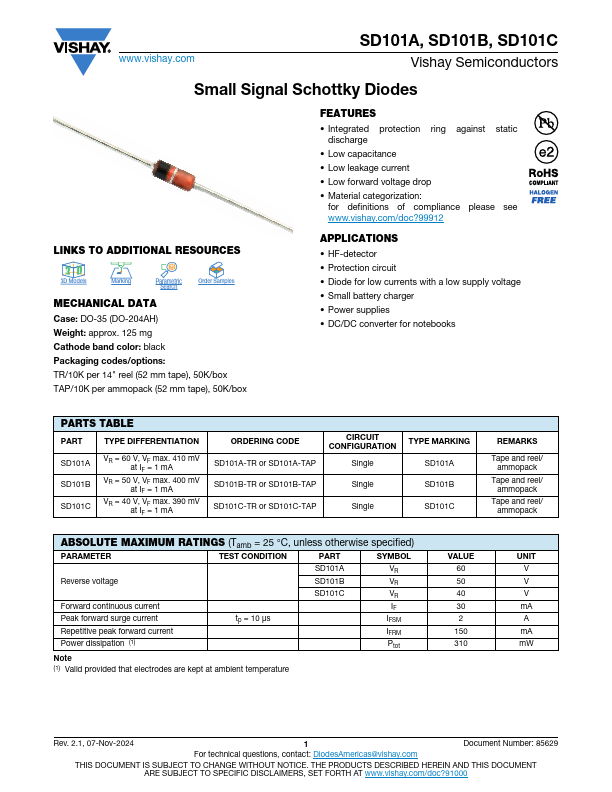

SD101B
FEATURES
- Integrated protection ring against static discharge
- Low capacitance
- Low leakage current
- Low forward voltage drop
- Material categorization: for definitions of pliance please see .vishay./doc?99912
APPLICATIONS
- HF-detector
- Protection circuit
- Diode for low currents with a low supply voltage
- Small battery charger
- Power supplies
- DC/DC converter for notebooks
PARTS TABLE
PART
TYPE DIFFERENTIATION
SD101A SD101B SD101C
VR = 60 V, VF max. 410 m V at IF = 1 m A
VR = 50 V, VF max. 400 m V at IF = 1 m A
VR = 40 V, VF max. 390 m V at IF = 1 m A
ORDERING CODE SD101A-TR or SD101A-TAP SD101B-TR or SD101B-TAP SD101C-TR or SD101C-TAP
CIRCUIT CONFIGURATION
TYPE MARKING
Single
SD101A
Single
Single
SD101C
REMARKS
Tape and reel/ ammopack
Tape and reel/ ammopack
Tape and reel/ ammopack
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
PARAMETER
TEST CONDITION
PART
SYMBOL
Reverse voltage
Forward continuous current Peak forward surge...
