SD101C, SD101A Small Signal Schottky Diodes

SD101C Description

www.vishay.com SD101A, SD101B, SD101C Vishay Semiconductors Small Signal Schottky Diodes LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking P.

SD101C Features

* Integrated protection ring against static discharge
* Low capacitance
* Low leakage current
* Low forward voltage drop

SD101C Applications

* HF-detector
* Protection circuit
* Diode for low currents with a low supply voltage
* Small battery charger
* Power supplies
* DC/DC converter for notebooks PARTS TABLE PART TYPE DIFFERENTIATION SD101A SD101B SD101C VR = 60 V, VF max. 410 mV at

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SD101C, SD101A. Please refer to the document for exact specifications by model.

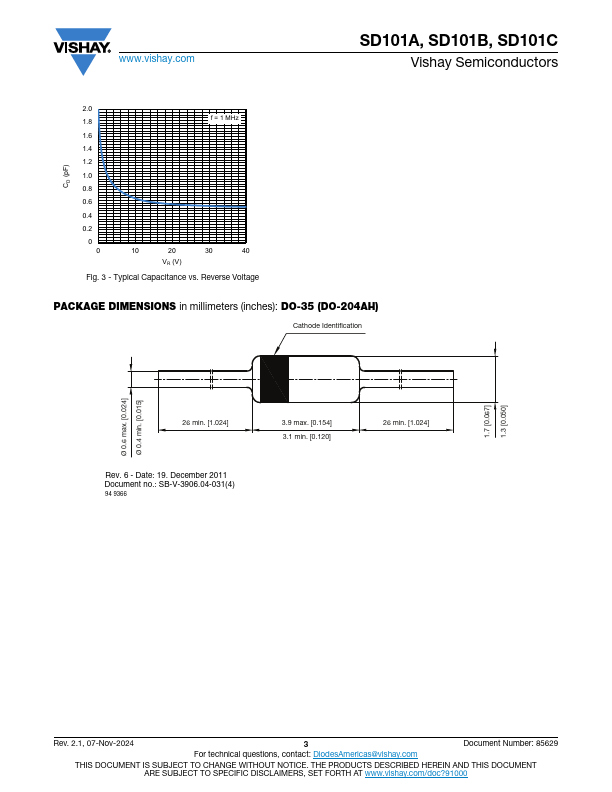

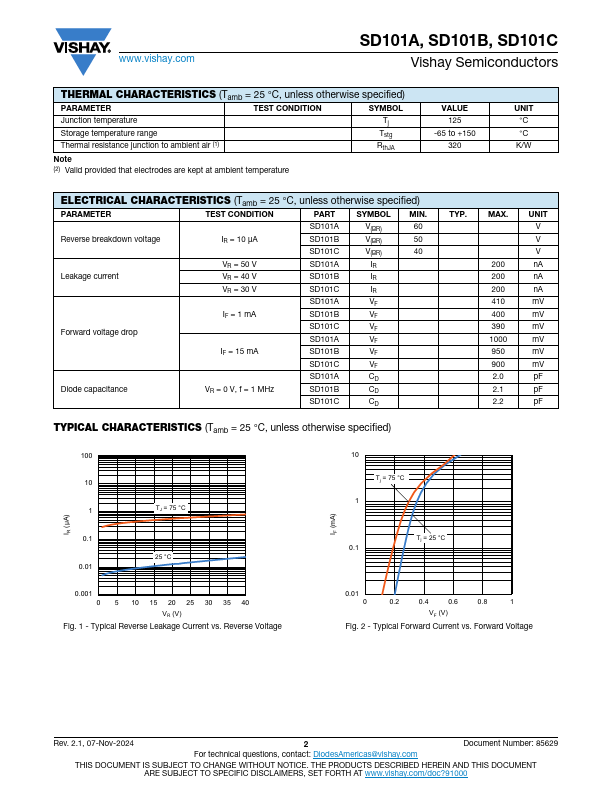

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SD101C, SD101A
Manufacturer
Vishay ↗
File Size
91.06 KB
Datasheet
SD101A-Vishay.pdf
Description
Small Signal Schottky Diodes
Note
This datasheet PDF includes multiple part numbers: SD101C, SD101A.
Please refer to the document for exact specifications by model.
