SD1053C18S20L, SD1053C18S30L, Fast Recovery Diodes

SD1053C..L Series Vishay High Power Products Fast Recovery Diodes (Hockey PUK Version), 920/1050 A DO-200AB (B-PUK) PRODUCT SUMMARY IF(AV) 920/105.

SD1053C18S30L-Vishay.pdf

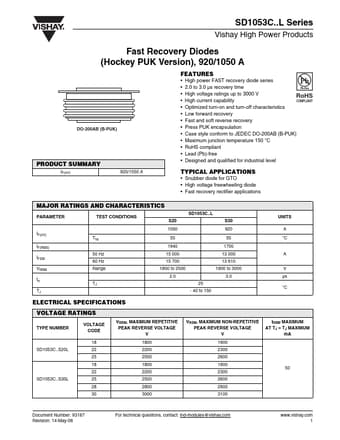

SD1053C18S20L Datasheet Preview — This datasheet PDF includes multiple part numbers: SD1053C18S20L, SD1053C18S30L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SD1053C18S20L, SD1053C18S30L

Manufacturer:

Vishay ↗

File Size:

455.83 KB

Description:

Fast Recovery Diodes

Note:

This datasheet PDF includes multiple part numbers: SD1053C18S20L, SD1053C18S30L.
Please refer to the document for exact specifications by model.

Features

* High power FAST recovery diode series
* 2.0 to 3.0 µs recovery time
* High voltage ratings up to 3000 V
* High current capability RoHS COMPLIANT
* Optimized turn-on and turn-off characteristics
* Low forward recovery
* Fast and soft re

Applications

* Snubber diode for GTO
* High voltage freewheeling diode
* Fast recovery rectifier applications MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS SD1053C. . L S20 S30 IF(AV) Ths 1050 55 920 55 IF(RMS) IFSM 50 Hz 60 Hz 1940 15 000 15 700 1700 13 000 13 610
