SFH600-1, SFH600 Optocoupler

Vishay

Description

End of Life June-2024 - Alternative Device: SFH601 www.vishay.com SFH600 Vishay Semiconductors Optocoupler, Phototransistor Output, With Base Conne.
The SFH600 is an optocoupler with a GaAs LED emitter which is optically coupled with a silicon planar phototransistor detector.

📥 Download Datasheet

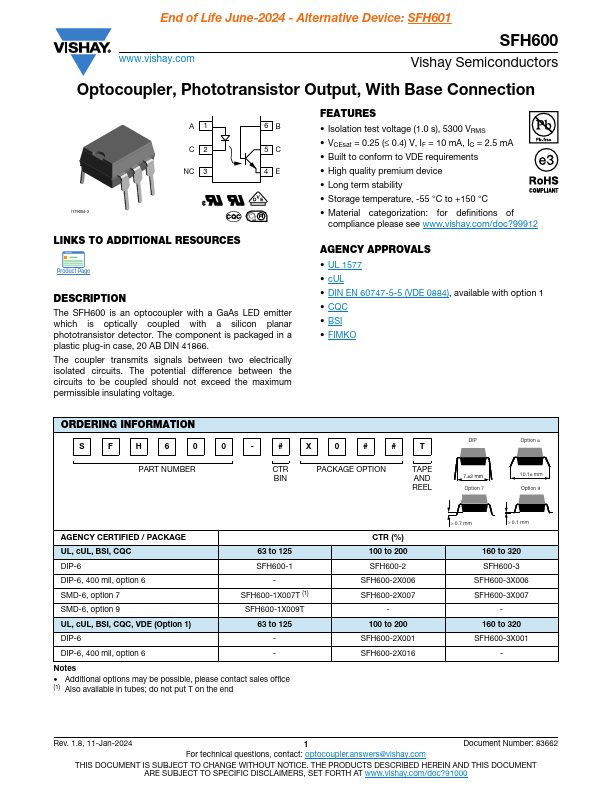

SFH600-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: SFH600-1, SFH600. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SFH600-1, SFH600
Manufacturer: Vishay ↗
File Size: 159.50 KB
Datasheet: SFH600-Vishay.pdf
Description: Optocoupler
Note: This datasheet PDF includes multiple part numbers: SFH600-1, SFH600.
Please refer to the document for exact specifications by model.

Features

* Isolation test voltage (1.0 s), 5300 VRMS
* VCEsat = 0.25 (≤ 0.4) V, IF = 10 mA, IC = 2.5 mA
* Built to conform to VDE requirements
* High quality premium device
* Long term stability
* Storage temperature, -55 °C to +150 °C
* Material catego
