SFH615A-1, SFH615A, Optocoupler

www.vishay.com SFH615A Vishay Semiconductors Optocoupler, Phototransistor Output, High Reliability, 5300 VRMS A1 C2 4C 3E 17918-20 .
The SFH615A feature a variety of transfer ratios, low coupling capacitance and high isolation voltage.

SFH615A_VishaySiliconix.pdf

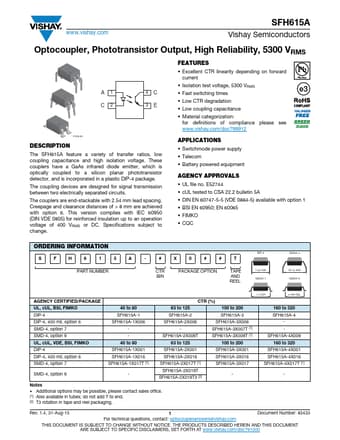

SFH615A-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: SFH615A-1, SFH615A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SFH615A-1, SFH615A

Manufacturer:

Vishay ↗

File Size:

189.39 KB

Description:

Optocoupler

Note:

This datasheet PDF includes multiple part numbers: SFH615A-1, SFH615A.
Please refer to the document for exact specifications by model.

Features

* Excellent CTR linearity depending on forward current
* Isolation test voltage, 5300 VRMS
* Fast switching times
* Low CTR degradation
* Low coupling capacitance
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99

Applications

* Switchmode power supply
* Telecom
* Battery powered equipment AGENCY APPROVALS
* UL file no. E52744
* cUL tested to CSA 22.2 bulletin 5A
* DIN EN 60747-5-5 (VDE 0884-5) available with option 1
* BSI EN 60950; EN 60065
* FIMKO
