SFH690AB - Optocoupler

Vishay

SFH690AB Datasheet Preview — Preview of SFH690AB PDF

Datasheet Details

Part number	SFH690AB
Manufacturer	Vishay ↗
File Size	132.39 KB
Description	Optocoupler
Datasheet	SFH690AB-Vishay.pdf

SFH690AB Product details

Description

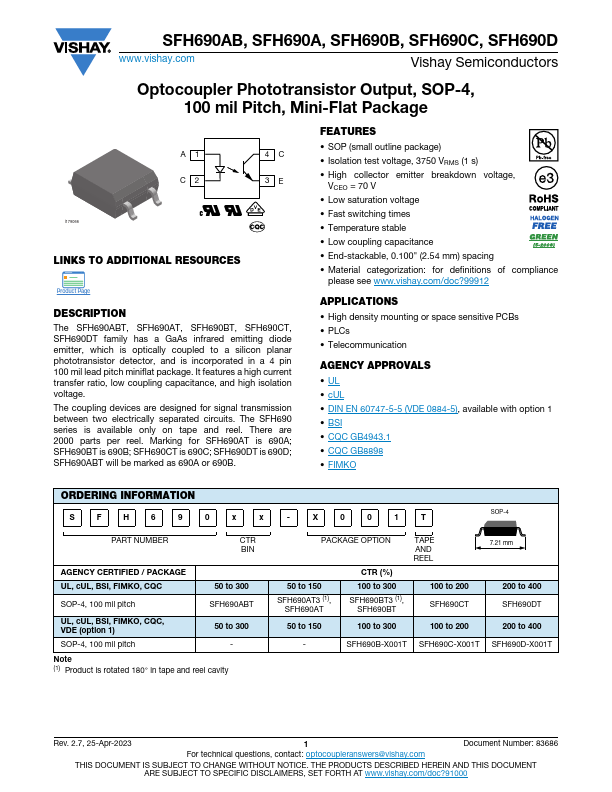

The SFH690ABT, SFH690AT, SFH690BT, SFH690CT, SFH690DT family has a GaAs infrared emitting diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a 4 pin 100 mil lead pitch miniflat package.

Features

a high current transfer ratio, low coupling capacitance, and high isolation voltage. The coupling devices are designed for signal transmission between two electrically separated circuits. The SFH690 series is available only on tape and reel. There are 2000 parts per reel. Marking for SFH690AT is 690A; SFH690BT is 690B; SFH690CT is 690C; SFH690DT is 690D; SFH690ABT will be marked as 690A or 690B.
