SFH690D, SFH690AB Optocoupler

Vishay

Description

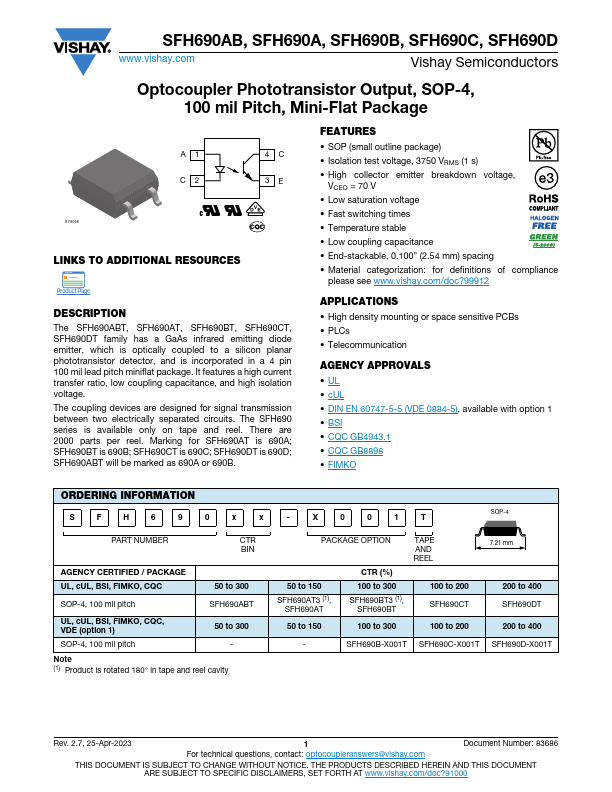

SFH690AB, SFH690A, SFH690B, SFH690C, SFH690D www.vishay.com Vishay Semiconductors Optocoupler Phototransistor Output, SOP-4, 100 mil Pitch, Mini-Fl.
The SFH690ABT, SFH690AT, SFH690BT, SFH690CT, SFH690DT family has a GaAs infrared emitting diode emitter, which is optically coupled to a silicon plana.

📥 Download Datasheet

SFH690D Datasheet Preview — This datasheet PDF includes multiple part numbers: SFH690D, SFH690AB. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SFH690D, SFH690AB
Manufacturer: Vishay ↗
File Size: 132.39 KB
Datasheet: SFH690AB-Vishay.pdf
Description: Optocoupler
Note: This datasheet PDF includes multiple part numbers: SFH690D, SFH690AB.
Please refer to the document for exact specifications by model.

Features

* a high current transfer ratio, low coupling capacitance, and high isolation voltage. The coupling devices are designed for signal transmission between two electrically separated circuits. The SFH690 series is available only on tape and reel. There are 2000 parts per reel. Marking for SFH690AT is 690

Applications

* High density mounting or space sensitive PCBs
* PLCs
* Telecommunication AGENCY APPROVALS
* UL
* cUL
* DIN EN 60747-5-5 (VDE 0884-5), available with option 1
* BSI
* CQC GB4943.1
* CQC GB8898
* FIMKO ORDERING INFORMAT
