SI5922DU Dual N-Channel 30V MOSFET

Vishay

Description

www.vishay.com Si5922DU Vishay Siliconix Dual N-Channel 30 V (D-S) MOSFET PowerPAK® ChipFET® Dual D2 D2 6 D1 7 D1 8 5 1.9 mm 1 3.0 mm Top Vi.

📥 Download Datasheet

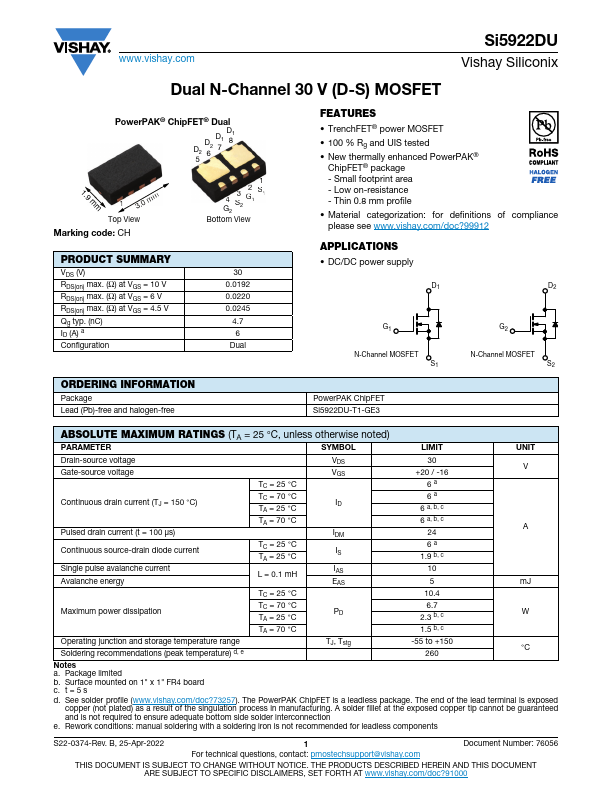

SI5922DU Datasheet Preview — Preview of SI5922DU PDF

Datasheet Specifications

Part number: SI5922DU
Manufacturer: Vishay ↗
File Size: 196.26 KB
Datasheet: SI5922DU-Vishay.pdf
Description: Dual N-Channel 30V MOSFET

Features

* TrenchFET® power MOSFET
* 100 % Rg and UIS tested
* New thermally enhanced PowerPAK® ChipFET® package - Small footprint area - Low on-resistance - Thin 0.8 mm profile
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 APPLIC

Applications

* DC/DC power supply D1 D2 G1 N-Channel MOSFET S1 PowerPAK ChipFET Si5922DU-T1-GE3 G2 N-Channel MOSFET S2 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER SYMBOL LIMIT UNIT Drain-source voltage Gate-source voltage VDS 30 V VGS +20 / -16 TC = 25 °C 6a
