SI7452DP, N-Channel 60-V Fast Switching MOSFET

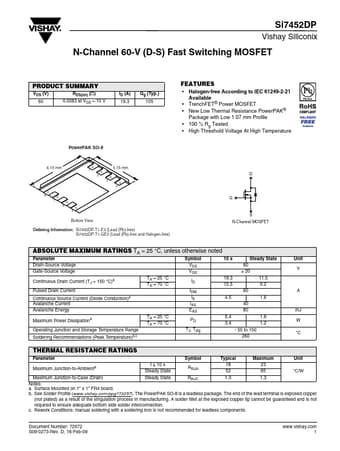

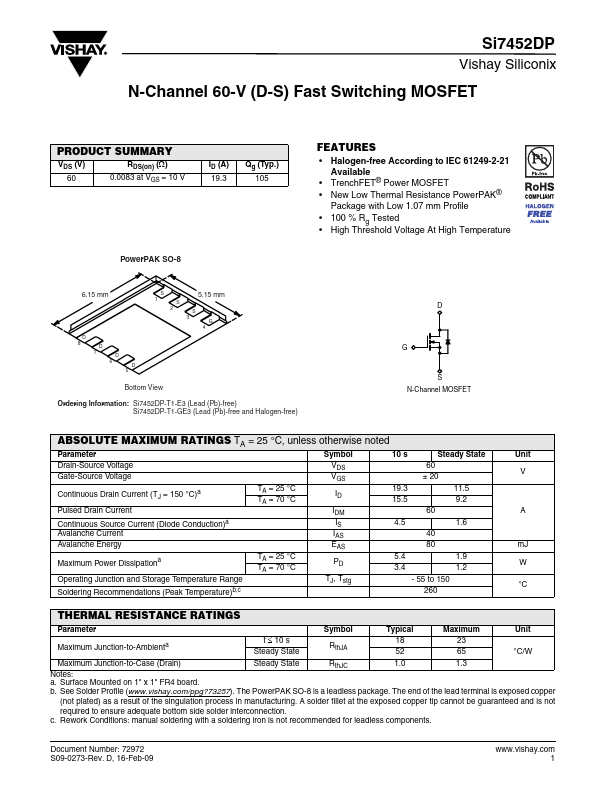

Si7452DP Vishay Siliconix N-Channel 60-V (D-S) Fast Switching MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 60 0.0083 at VGS = 10 V ID (A) 19.3 Qg.

datasheet Preview Page 1 from Datasheet4u.com

SI7452DP-Vishay.pdf

SI7452DP Datasheet Preview — Preview of SI7452DP PDF

Datasheet Details

Part number:

SI7452DP

Manufacturer:

Vishay ↗

File Size:

86.91 KB

Description:

N-Channel 60-V Fast Switching MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Available
* TrenchFET® Power MOSFET
* New Low Thermal Resistance PowerPAK® Package with Low 1.07 mm Profile
* 100 % Rg Tested
* High Threshold Voltage At High Temperature 6.15 mm D 8 D 7 D 6 D 5 S 1 S 5.15 mm
