SIS414DN, N-Channel 30V MOSFET

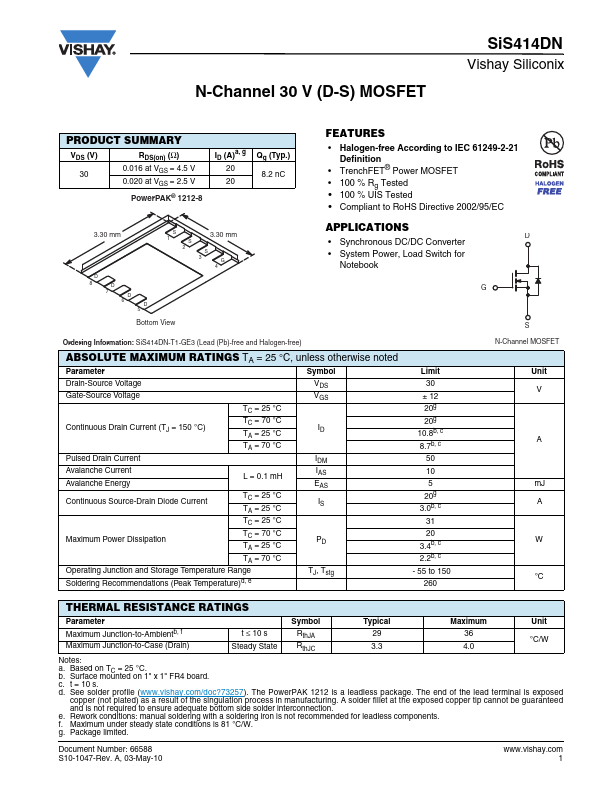

N-Channel 30 V (D-S) MOSFET SiS414DN Vishay Siliconix PRODUCT SUMMARY VDS (V) 30 RDS(on) (Ω) 0.016 at VGS = 4.5 V 0.020 at VGS = 2.5 V PowerPAK® .

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested
* 100 % UIS Tested

Applications

* Synchronous DC/DC Converter
* System Power, Load Switch for Notebook Ordering Information: SiS414DN-T1-GE3 (Lead (Pb)-free and Halogen-free) ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage Continuous D
