SiS413DN P-Channel 30V MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

P-Channel 30 V (D-S) MOSFET SiS413DN Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) () Max.0.0094 at VGS = - 10 V - 30 0.0132 at VGS = - 4.5 .

📥 Download Datasheet

Preview of SiS413DN PDF

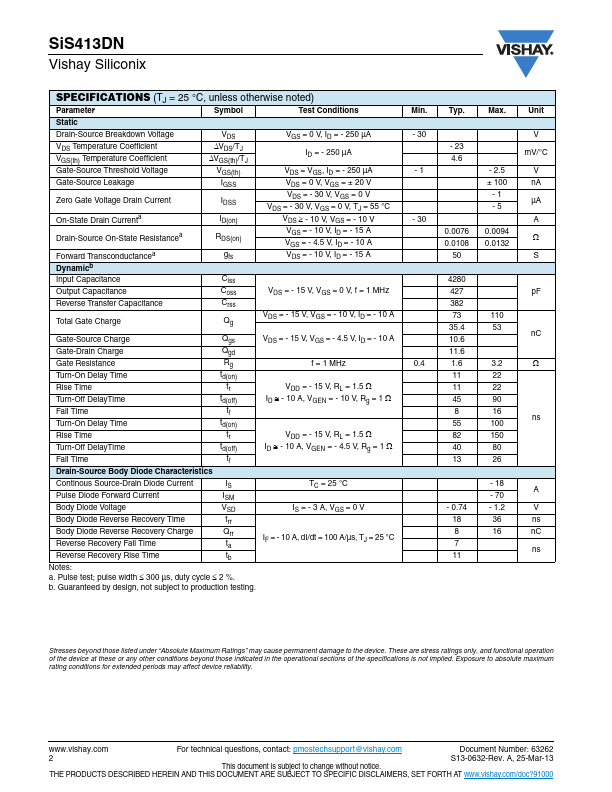

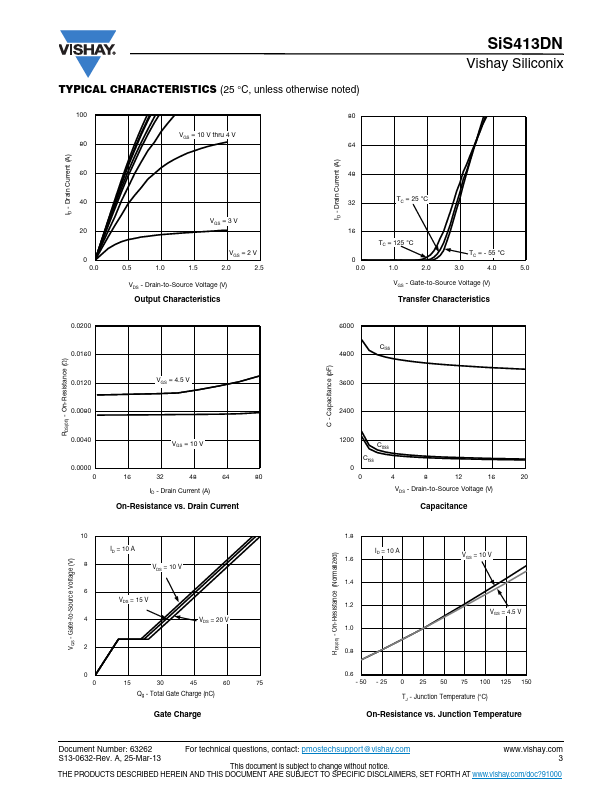

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SiS413DN
Manufacturer
Vishay ↗
File Size
540.15 KB
Datasheet
SiS413DN-Vishay.pdf
Description
P-Channel 30V MOSFET

Features

* TrenchFET® Power MOSFET
* 100% Rg and UIS Tested
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 PowerPAK® 1212-8 3.30 mm D 8 D 7 D 6 D 5 S 1 S 3.30 mm 2 S 3 G 4 Bottom View Ordering Information: SiS413DN-T1-GE3 (

Applications

* Adaptor Switch
* Load Switch
* Power Management
* Mobile Computing S G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C)
