SIS444DN N-Channel 30V MOSFET

Vishay

Description

www.vishay.com SiS444DN Vishay Siliconix N-Channel 30 V (D-S) MOSFET PowerPAK® 1212-8 Single D D8 D7 D6 5 .

📥 Download Datasheet

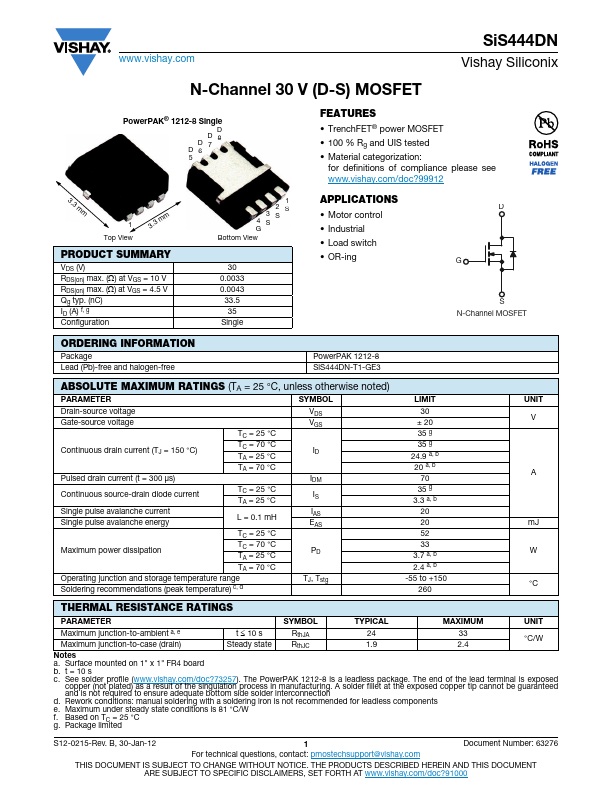

SIS444DN Datasheet Preview — Preview of SIS444DN PDF

Datasheet Specifications

Part number: SIS444DN
Manufacturer: Vishay ↗
File Size: 562.71 KB
Datasheet: SIS444DN_Vishay.pdf
Description: N-Channel 30V MOSFET

Features

* TrenchFET® power MOSFET
* 100 % Rg and UIS tested
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 3.3 mm 1 Top View 3.3 mm PRODUCT SUMMARY VDS (V) RDS(on) max. () at VGS = 10 V RDS(on) max. () at VGS = 4.5 V Qg typ. (nC) I

Applications

* Motor control
* Industrial
* Load switch
* OR-ing D G S N-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-free PowerPAK 1212-8 SiS444DN-T1-GE3 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-source v
