SiS447DN P-Channel 20V MOSFET

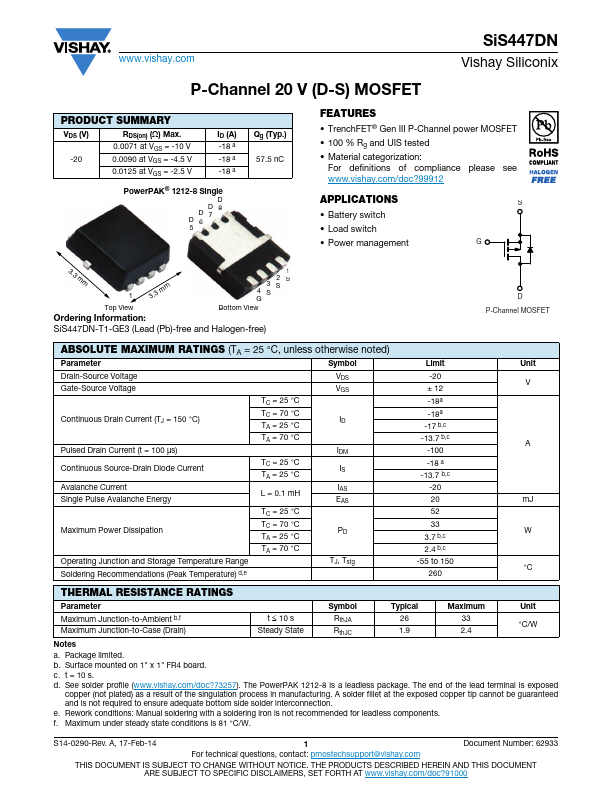

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.vishay.com SiS447DN Vishay Siliconix P-Channel 20 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) -20 RDS(on) () Max.0.0071 at VGS = -10 V 0.0090 at.

📥 Download Datasheet

Preview of SiS447DN PDF

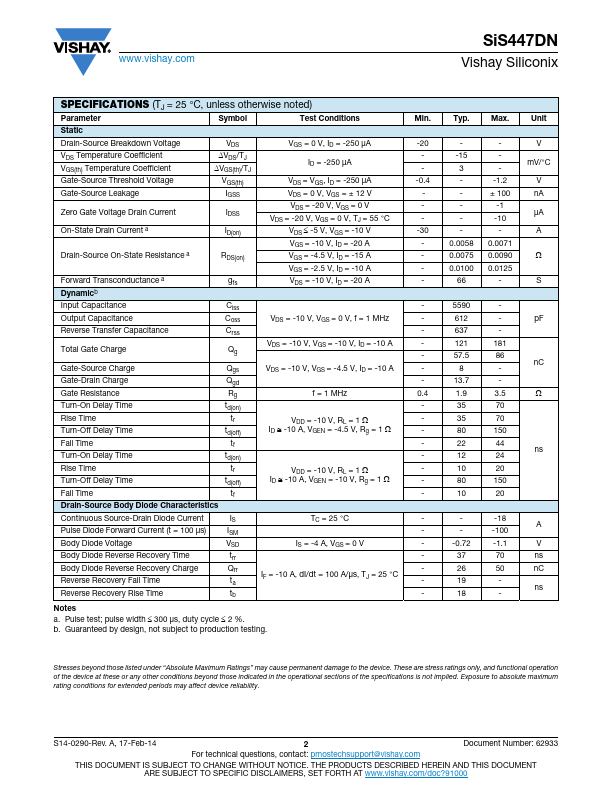

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SiS447DN
Manufacturer
Vishay ↗
File Size
627.04 KB
Datasheet
SiS447DN-Vishay.pdf
Description
P-Channel 20V MOSFET

Features

* TrenchFET® Gen III P-Channel power MOSFET
* 100 % Rg and UIS tested

Applications

* Battery switch
* Load switch
* Power management S G 3.3 mm 1 3.3 mm 1 2S 3S 4S G Top View Bottom View Ordering Information: SiS447DN-T1-GE3 (Lead (Pb)-free and Halogen-free) D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Paramet
