SIS478DN N-Channel 30V MOSFET

SIS478DN Description

N-Channel 30 V (D-S) MOSFET SiS478DN Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) () 0.020 at VGS = 10 V 30 0.030 at VGS = 4.5 V ID (A)a 12.

SIS478DN Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested
* 100 % UIS Tested

SIS478DN Applications

* Notebook PC - System Power D - Load Switch G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 30 V VGS ± 25 TC = 25 °C 12a Continuous Drain Current (TJ = 150 °C) TC

📥 Download Datasheet

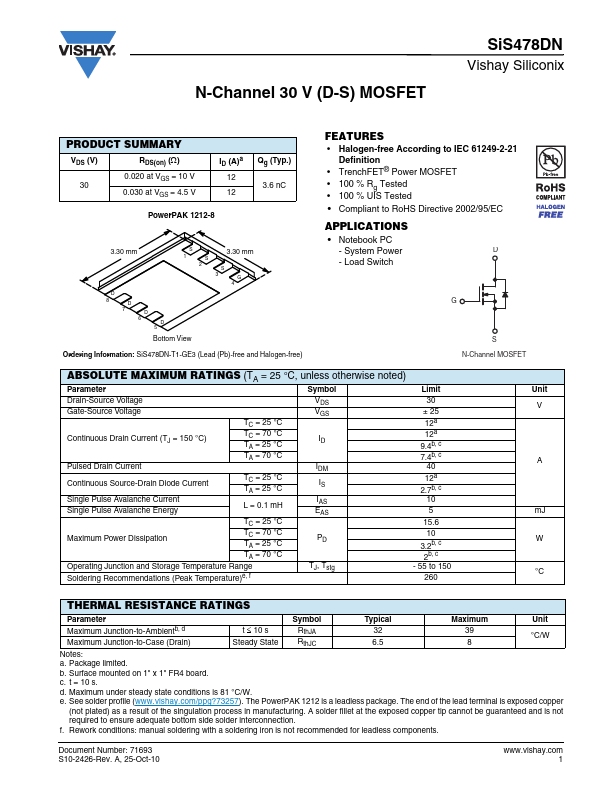

Preview of SIS478DN PDF

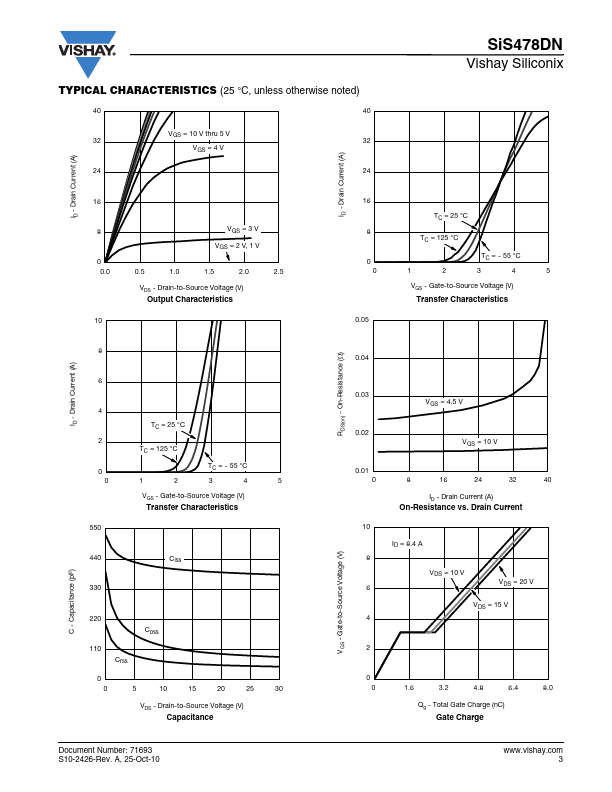

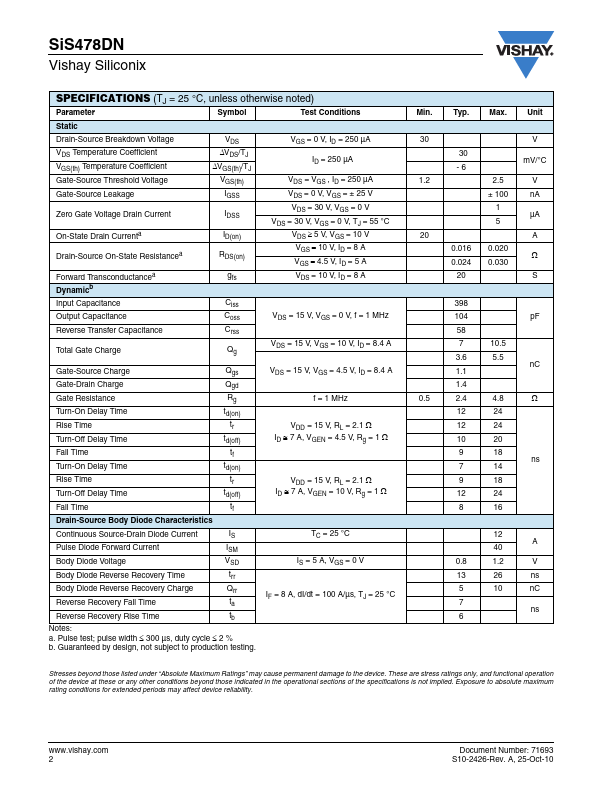

datasheet Preview Page 2 datasheet Preview Page 3
