SM15T6V8A, SM15T, Surface Mount Transient Voltage Suppressors

www.vishay.com SM15T Series Vishay General Semiconductor Surface Mount TRANSZORB® Transient Voltage Suppressors Cathode SMC (DO-214AB) Anode (uni.

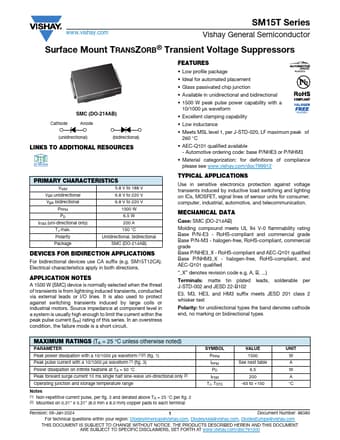

datasheet Preview Page 1 from Datasheet4u.com

SM15T-Vishay.pdf

SM15T6V8A Datasheet Preview — This datasheet PDF includes multiple part numbers: SM15T6V8A, SM15T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SM15T6V8A, SM15T

Manufacturer:

Vishay ↗

File Size:

108.55 KB

Description:

Surface Mount Transient Voltage Suppressors

Note:

This datasheet PDF includes multiple part numbers: SM15T6V8A, SM15T.
Please refer to the document for exact specifications by model.

Features

* Low profile package Available
* Ideal for automated placement
* Glass passivated chip junction
* Available in unidirectional and bidirectional
* 1500 W peak pulse power capability with a 10/1000 μs waveform
* Excellent clamping capability Avai

Applications

* For bidirectional devices use CA suffix (e. g. SM15T12CA). Electrical characteristics apply in both directions. APPLICATION NOTES A 1500 W (SMC) device is normally selected when the threat of transients is from lightning induced transients, conducted via external leads or I/O lines. It is also used
