SM6S10A - TVS

Datasheet Summary

Features

  • Junction passivation optimized design passivated anisotropic rectifier technology.
  • TJ = 175 °C capability suitable for high reliability and automotive requirement.
  • Available in unidirectional polarity only.
  • Low leakage current.
  • Low forward voltage drop.
  • High surge capability.
  • Meets ISO7637-2 surge specification (varied by test condition).
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C.
  • AEC-Q101 qualifi.

📥 Download Datasheet

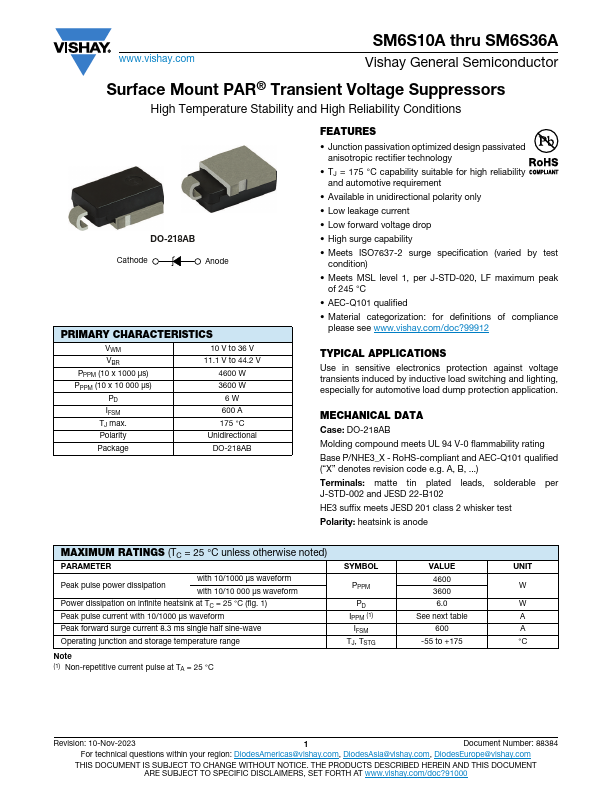

Datasheet preview – SM6S10A

Datasheet Details

Part number SM6S10A
Manufacturer Vishay
File Size 124.43 KB
Description TVS
Datasheet download datasheet SM6S10A Datasheet

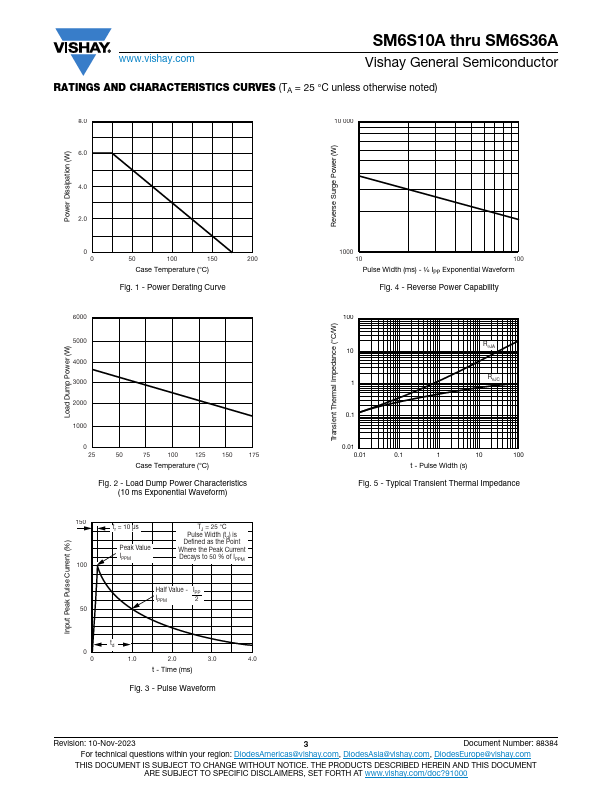

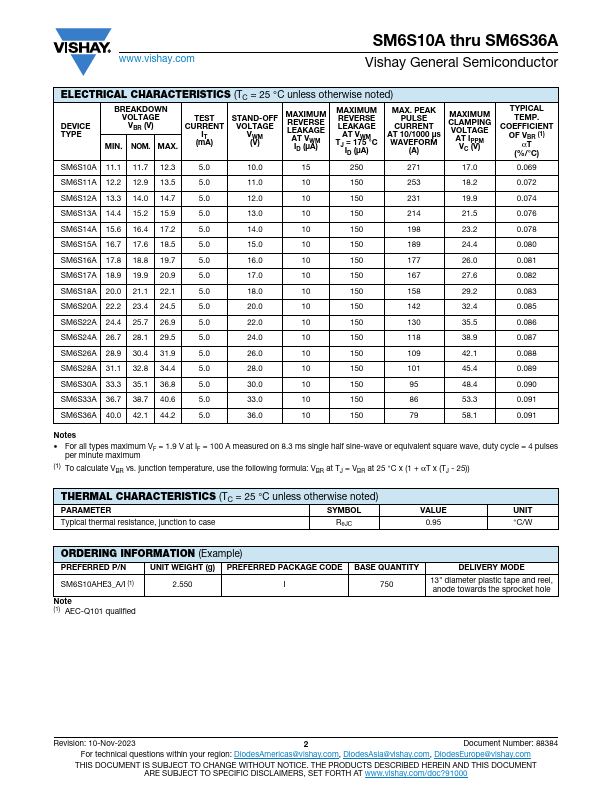

Additional preview pages of the SM6S10A datasheet.

📁 Similar Datasheet

  • SM6S10A - TVS (MCC)
  • SM6S10A - 4600W Transient Voltage Suppressor (JIEJIE)
  • SM6S10A - 4600W Transient Voltage Suppressor (HUAAN)
  • SM6S10CA - 4600W Transient Voltage Suppressor (JIEJIE)
  • SM6S10CA - 4600W Transient Voltage Suppressor (HUAAN)
  • SM6S11A - TVS (MCC)
  • SM6S11A - 4600W Transient Voltage Suppressor (JIEJIE)
  • SM6S11A - 4600W Transient Voltage Suppressor (HUAAN)
  • SM6S11CA - 4600W Transient Voltage Suppressor (JIEJIE)
  • SM6S11CA - 4600W Transient Voltage Suppressor (HUAAN)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text
www.vishay.com SM6S10A thru SM6S36A Vishay General Semiconductor Surface Mount PAR® Transient Voltage Suppressors High Temperature Stability and High Reliability Conditions DO-218AB Cathode Anode PRIMARY CHARACTERISTICS VWM 10 V to 36 V VBR PPPM (10 x 1000 μs) PPPM (10 x 10 000 μs) 11.1 V to 44.2 V 4600 W 3600 W PD IFSM TJ max.
