SM6S15A, SM6S10A TVS

SM6S15A Description

www.vishay.com SM6S10A thru SM6S36A Vishay General Semiconductor Surface Mount PAR® Transient Voltage Suppressors High Temperature Stability and Hig.

SM6S15A Features

* Junction passivation optimized design passivated anisotropic rectifier technology
* TJ = 175 °C capability suitable for high reliability and automotive requirement
* Available in unidirectional polarity only
* Low leakage current
* Low forward voltage drop

SM6S15A Applications

* Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application. MECHANICAL DATA Case: DO-218AB Molding compound meets UL 94 V-0 flammability rating Base P/NHE3_X - RoHS-compliant and AEC-

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM6S15A, SM6S10A. Please refer to the document for exact specifications by model.

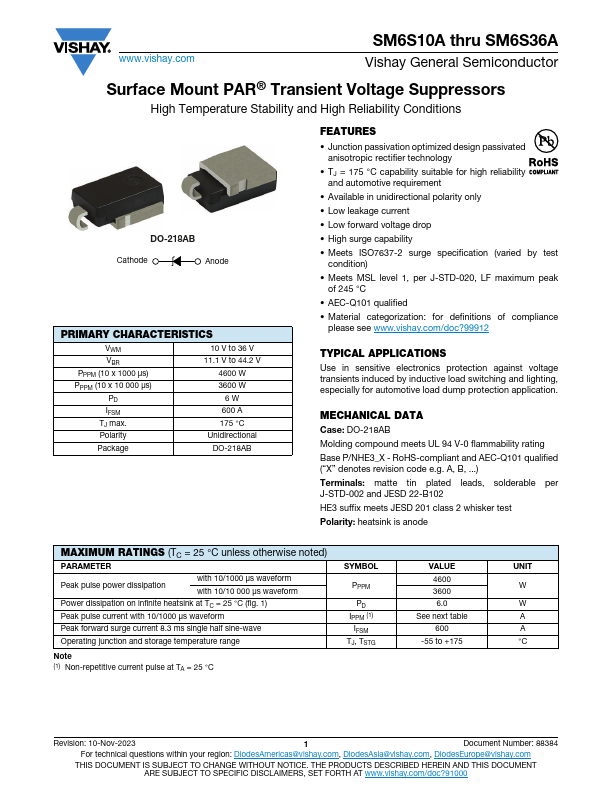

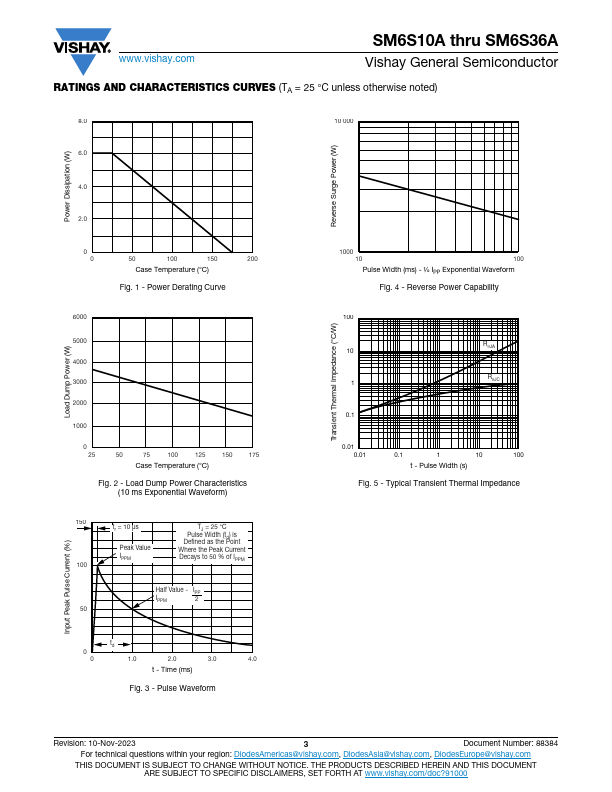

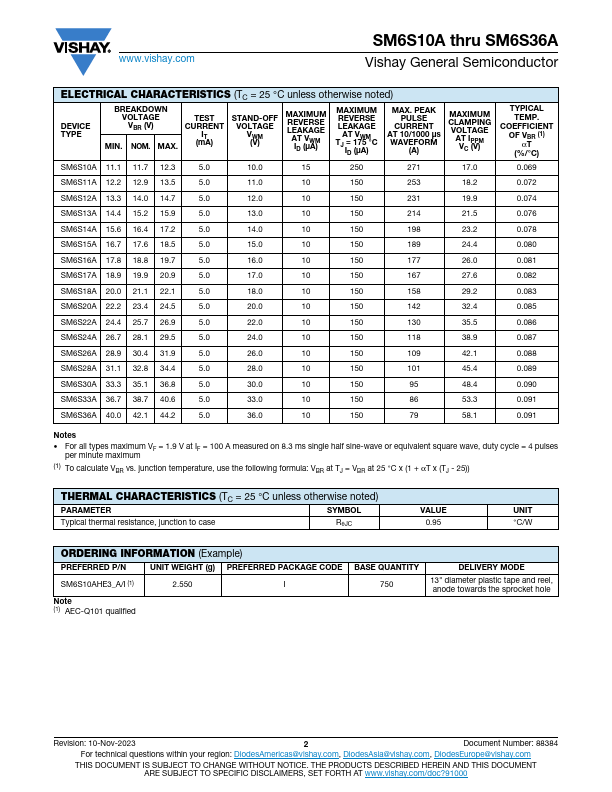

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM6S15A, SM6S10A
Manufacturer
Vishay ↗
File Size
124.43 KB
Datasheet
SM6S10A-Vishay.pdf
Description
TVS
Note
This datasheet PDF includes multiple part numbers: SM6S15A, SM6S10A.
Please refer to the document for exact specifications by model.
