SM6S14A, SM6S10A TVS

Vishay

Description

www.vishay.com SM6S10A thru SM6S36A Vishay General Semiconductor Surface Mount PAR® Transient Voltage Suppressors High Temperature Stability and Hig.

📥 Download Datasheet

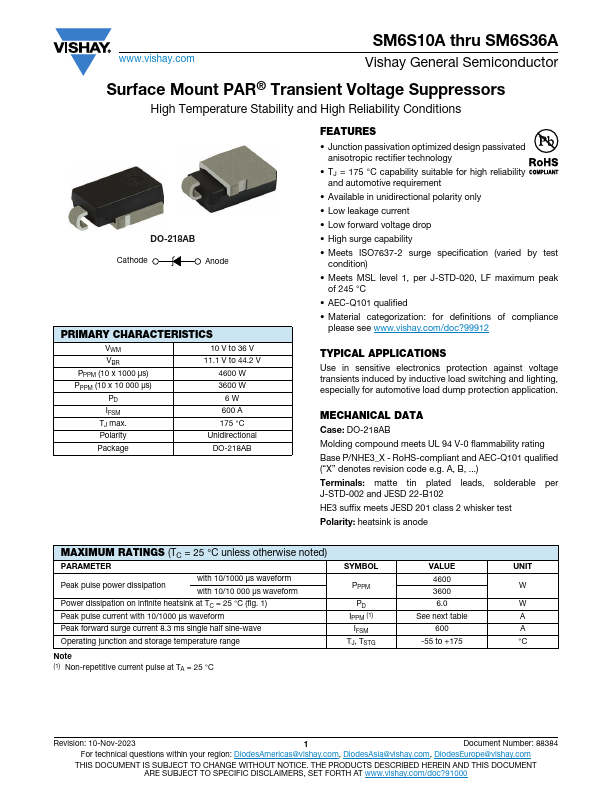

SM6S14A Datasheet Preview — This datasheet PDF includes multiple part numbers: SM6S14A, SM6S10A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SM6S14A, SM6S10A
Manufacturer: Vishay ↗
File Size: 124.43 KB
Datasheet: SM6S10A-Vishay.pdf
Description: TVS
Note: This datasheet PDF includes multiple part numbers: SM6S14A, SM6S10A.
Please refer to the document for exact specifications by model.

Features

* Junction passivation optimized design passivated anisotropic rectifier technology
* TJ = 175 °C capability suitable for high reliability and automotive requirement
* Available in unidirectional polarity only
* Low leakage current
* Low forward voltage drop

Applications

* Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application. MECHANICAL DATA Case: DO-218AB Molding compound meets UL 94 V-0 flammability rating Base P/NHE3_X - RoHS-compliant and AEC-
