SM6S28A, SM6S10A - TVS

Vishay

📥 Download Datasheet

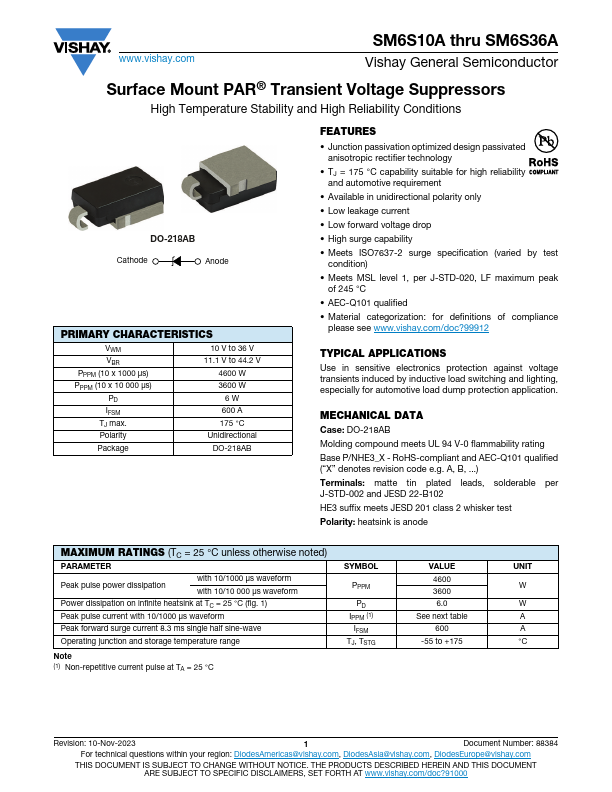

SM6S28A Datasheet Preview — This datasheet PDF includes multiple part numbers: SM6S28A, SM6S10A. Please refer to the document for exact specifications by model.

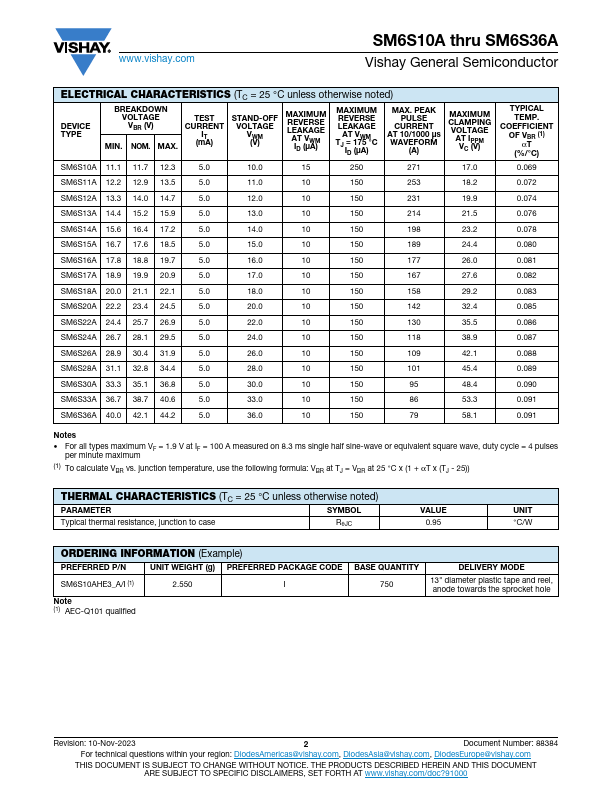

datasheet Preview Page 2

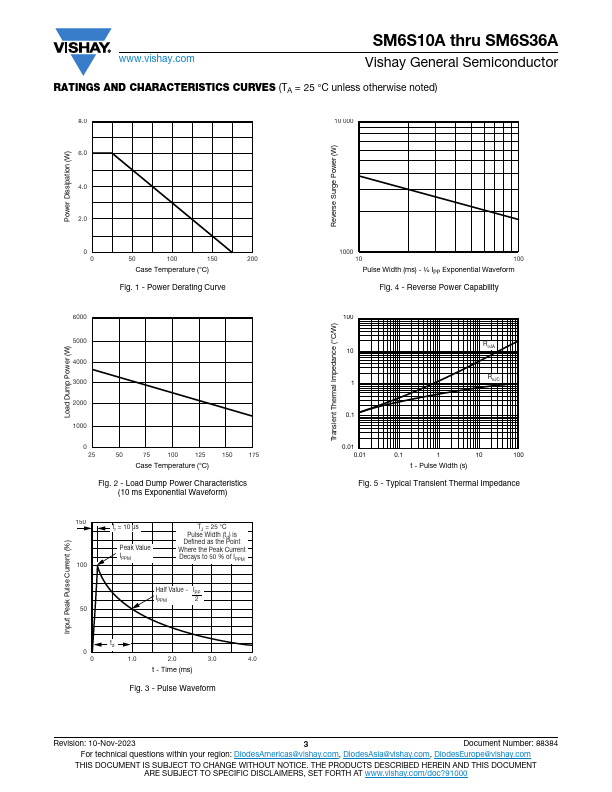

datasheet Preview Page 3

Datasheet Details

Part number	SM6S28A, SM6S10A
Manufacturer	Vishay ↗
File Size	124.43 KB
Description	TVS
Datasheet	SM6S10A-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: SM6S28A, SM6S10A. Please refer to the document for exact specifications by model.

SM6S28A Product details

Features

Junction passivation optimized design passivated anisotropic rectifier technology.
TJ = 175 °C capability suitable for high reliability and automotive requirement.
Available in unidirectional polarity only.
Low leakage current.
Low forward voltage drop.
High surge capability.
Meets ISO7637-2 surge specification (varied by test condition).
Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C.
AEC-Q101 qualifi.
