SMF6V5A, SMF5V0A, Surface Mount ESD Protection Diodes

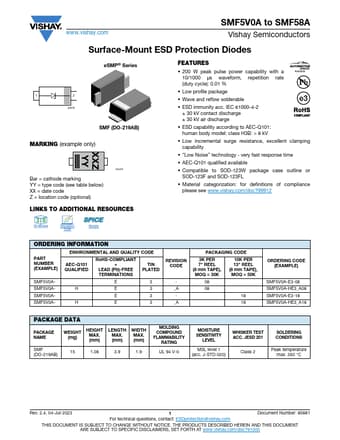

www.vishay.com SMF5V0A to SMF58A Vishay Semiconductors Surface-Mount ESD Protection Diodes eSMP® Series 1 2 20278 SMF (DO-219AB) MARKING (examp.

SMF5V0A-Vishay.pdf

SMF6V5A Datasheet Preview — This datasheet PDF includes multiple part numbers: SMF6V5A, SMF5V0A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMF6V5A, SMF5V0A

Manufacturer:

Vishay ↗

File Size:

141.05 KB

Description:

Surface Mount ESD Protection Diodes

Note:

This datasheet PDF includes multiple part numbers: SMF6V5A, SMF5V0A.
Please refer to the document for exact specifications by model.

Features

* 200 W peak pulse power capability with a 10/1000 μs waveform, repetition rate (duty cycle): 0.01 % Available
* Low profile package
* Wave and reflow solderable
* ESD immunity acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge
* ESD capa
