SMF8V0A, SMF5V0A Surface Mount ESD Protection Diodes

SMF8V0A Description

www.vishay.com SMF5V0A to SMF58A Vishay Semiconductors Surface-Mount ESD Protection Diodes eSMP® Series 1 2 20278 SMF (DO-219AB) MARKING (examp.

SMF8V0A Features

* 200 W peak pulse power capability with a 10/1000 μs waveform, repetition rate (duty cycle): 0.01 % Available
* Low profile package
* Wave and reflow solderable
* ESD immunity acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge
* ESD capa

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMF8V0A, SMF5V0A. Please refer to the document for exact specifications by model.

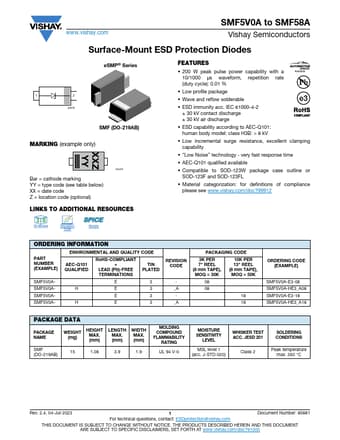

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SMF8V0A, SMF5V0A
Manufacturer
Vishay ↗
File Size
141.05 KB
Datasheet
SMF5V0A-Vishay.pdf
Description
Surface Mount ESD Protection Diodes
Note
This datasheet PDF includes multiple part numbers: SMF8V0A, SMF5V0A.
Please refer to the document for exact specifications by model.
