SML4756A, SML4738 Surface Mount Zener Diodes

SML4756A Description

www.vishay.com SML4738 to SML4764A Vishay Semiconductors Surface Mount Zener Diodes DO-214AC (SMA) PRIMARY CHARACTERISTICS PARAMETER VALUE VZ r.

SML4756A Features

* Plastic package has underwriters laboratory flammability classification 94 V-0

SML4756A Applications

* Low Zener impedance
* Low regulation factor
* High temperature soldering guaranteed: 260 °C/10 s at terminals
* Standard voltage tolerance is ± 10 %, suffix A ± 5 %
* AEC-Q101 qualified
* Material categorization: for definitions of compliance please

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SML4756A, SML4738. Please refer to the document for exact specifications by model.

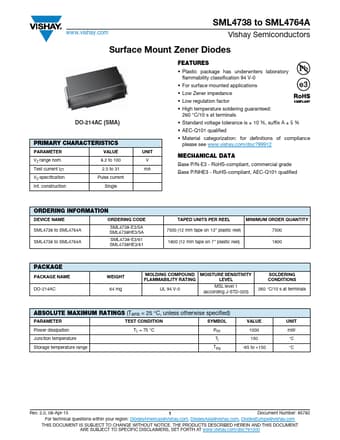

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SML4756A, SML4738
Manufacturer
Vishay ↗
File Size
89.75 KB
Datasheet
SML4738-Vishay.pdf
Description
Surface Mount Zener Diodes
Note
This datasheet PDF includes multiple part numbers: SML4756A, SML4738.
Please refer to the document for exact specifications by model.
