SQM120N03-1m5L

Automotive N-Channel MOSFET

SQM120N03-1m5L Features

* Halogen-free According to IEC 61249-2-21 Definition

* TrenchFET® Power MOSFET

* Package with Low Thermal Resistance

* 100 % Rg and UIS Tested

* AEC-Q101 Qualifiedd

* Compliant to RoHS Directive 2002/95/EC G G DS Top View ORDERING INFORMATION Packag

SQM120N03-1m5L Datasheet (171.94 KB)

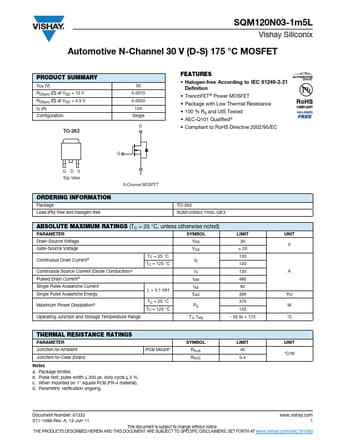

Preview of SQM120N03-1m5L PDF

Datasheet Details

Part number:

SQM120N03-1m5L

Manufacturer:

Vishay ↗

File Size:

171.94 KB

Description:

Automotive n-channel mosfet.
SQM120N03-1m5L Vishay Siliconix Automotive N-Channel 30 V (D-S) 175 °C MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () at VGS = 10 V RDS(on) () at VGS = .
