SUD50N04-8m8P N-Channel MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

SUD50N04-8m8P Vishay Siliconix N-Channel 40-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 40 0.0088 at VGS = 10 V 0.0105 at VGS = 4.5 V ID (.

📥 Download Datasheet

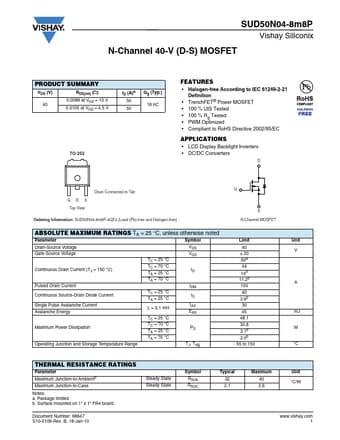

Preview of SUD50N04-8m8P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % UIS Tested
* 100 % Rg Tested
* PWM Optimized

Applications

* LCD Display Backlight Inverters
* DC/DC Converters D GDS Top View Drain Connected to Tab Ordering Information: SUD50N04-8m8P-4GE3 (Lead (Pb)-free and Halogen-free) ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source V
