SUD50N06-36 - N-Channel MOSFET

Features

  • TrenchFET® Power MOSFET.
  • 100 % Rg & UIS Tested RoHS.

📥 Download Datasheet

Datasheet preview – SUD50N06-36

Datasheet Details

Part number SUD50N06-36
Manufacturer Vishay
File Size 169.00 KB
Description N-Channel MOSFET
Datasheet download datasheet SUD50N06-36 Datasheet
Additional preview pages of the SUD50N06-36 datasheet.

📁 Similar Datasheet

Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

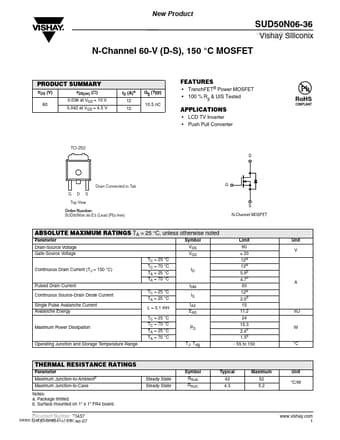

New Product SUD50N06-36 www.DataSheet4U.com Vishay Siliconix N-Channel 60-V (D-S), 150 °C MOSFET PRODUCT SUMMARY VDS (V) 60 rDS(on) (Ω) 0.036 at VGS = 10 V 0.042 at VGS = 4.5 V ID (A)a 12 12 Qg (Typ) 10.5 nC FEATURES • TrenchFET® Power MOSFET • 100 % Rg & UIS Tested RoHS COMPLIANT APPLICATIONS • LCD TV Inverter • Push Pull Converter TO-252 D Drain Connected to Tab G D S G Top View Order Number: SUD50N06-36-E3 (Lead (Pb)-free) S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Drain-Source Voltage Gate-Source Voltage TC = 25 °C TC = 70 °C TA = 25 °C TA = 70 °C TC = 25 °C TA = 25 °C L = 0.1 mH TC = 25 °C TC = 70 °C TA = 25 °C TA = 70 °C Symbol VDS VGS Limit 60 ± 20 12a 12a 5.9b 4.7b 50 12a 2.0b 15 11.2 24 15.3 2.4b 1.
