SUM80090E N-Channel MOSFET

SUM80090E Description

www.vishay.com SUM80090E Vishay Siliconix N-Channel 150 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () MAX.0.0090 at VGS = 10 V 150 0.0105 .

SUM80090E Features

* ThunderFET® power MOSFET
* Maximum 175 °C junction temperature
* 100 % Rg and UIS tested

SUM80090E Applications

* D
* Power supplies: - Uninterruptible power supplies - AC/DC switch-mode power supplies - Lighting
* Synchronous rectification G
* DC/DC converter
* Motor drive switch
* DC/AC inverter S
* Solar micro inverter N-Channel MOSFET
* Cl

📥 Download Datasheet

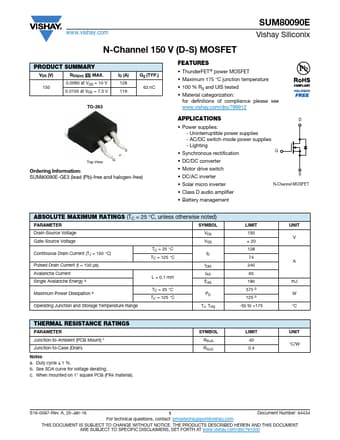

Preview of SUM80090E PDF
