SUM80UF, SUM60UF Datasheet - SSDI

SUM80UF (SUM60UF - SUM90UF) ULTRA FAST RECOVERY RECTIFIER

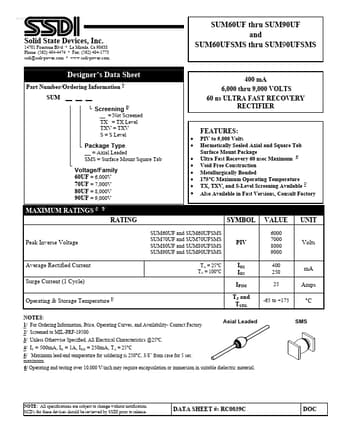

www.DataSheet4U.com Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com SUM60UF thru SUM90UF and SUM60UFSMS thru SUM90UFSMS Designer’s Data Sheet Part Number/Ordering Information SUM __ __ __ │ │ │ │ │ │ │ │ │ └ │ └ Screening 2/ │ __ = Not Screened │ TX = TX Level │ TXV = TXV │ S = S Level │ └ Package Type __ = Axial Leaded SMS = Surface Mount Square Tab 1/ 400 mA 6,000 thru 9,00.

SUM80UF Features

* PIV to 9,000 Volts Hermetically Sealed Axial and Square Tab Surface Mount Package Ultra Fast Recovery 60 nsec Maximum 4/ Void Free Construction Metallurgically Bonded 175°C Maximum Operating Temperature TX, TXV, and S-Level Screening Available 2/ Also Available in Fast Versions, Consult Factory Vo

SUM60UF_SSDI.pdf

SUM80UF Datasheet Preview — This datasheet PDF includes multiple part numbers: SUM80UF, SUM60UF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SUM80UF, SUM60UF

Manufacturer:

SSDI

File Size:

173.19 KB

Description:

(sum60uf - sum90uf) ultra fast recovery rectifier.

Note:

This datasheet PDF includes multiple part numbers: SUM80UF, SUM60UF.
Please refer to the document for exact specifications by model.
