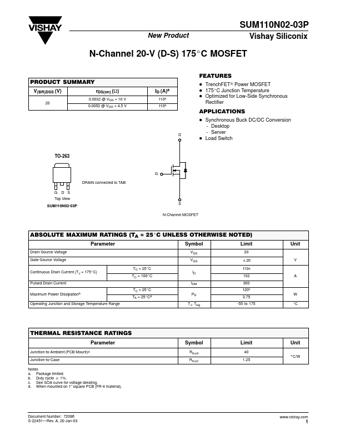

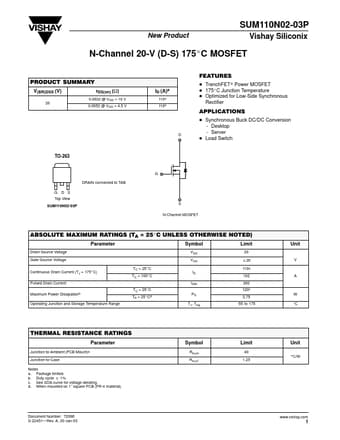

SUM110N02-03P Datasheet, Mosfet, Vishay Siliconix

SUM110N02-03P Features

• Mosfet rDS(on) (W) ID (A)a 110a 110a 0.0032 @ VGS = 10 V 0.0052 @ VGS = 4.5 V D TrenchFETr Power MOSFET D 175_C Junction Temperature D Optimized for Low-Side Synchronous Rectifier APPLICATI

PDF File Details

Part number:

SUM110N02-03P

Manufacturer:

Vishay ↗ Siliconix

File Size:

42.83kb

Download:

📄 Datasheet

Description:

N-channel 20-v (d-s) 175 c mosfet.

SUM110N02-03P Application

• Applications D Synchronous Buck DC/DC Conversion - Desktop - Server D Load Switch D TO-263 G DRAIN connected to TAB G D S S N-Channel MOSFET Top
