SUM110N03-03P

N-Channel 30-V (D-S) 175C MOSFET

Vishay Siliconix

SUM110N03-03P General Description

The attached spice model describes the typical electrical characteristics of the n-channel vertical DMOS. The subcircuit model is extracted and optimized over the

*55 to 125°C temperature ranges under the pulsed 0 to 10V gate drive. The saturated output impedance is best fit at the gate bias.

SUM110N03-03P Datasheet (181.85 KB)

SUM110N03-03P Datasheet Preview — Preview of SUM110N03-03P PDF

Datasheet Details

Part number:

SUM110N03-03P

Manufacturer:

Vishay ↗ Siliconix

File Size:

181.85 KB

Description:

N-channel 30-v (d-s) 175c mosfet.

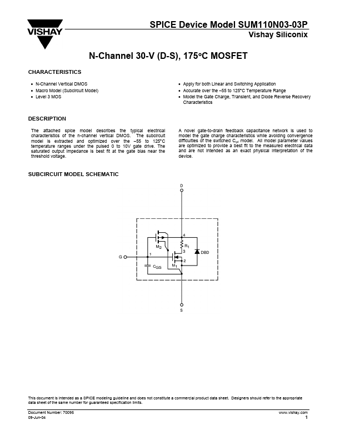

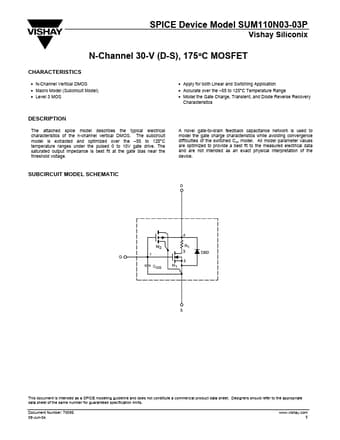

SPICE Device Model SUM110N03-03P Vishay Siliconix N-Channel 30-V (D-S), 175°C MOSFET CHARACTERISTICS

* N-Channel Vertical DMOS

* Macr.
