SUM120N04-1m7L N-Channel 40-V (D-S) MOSFET

SUM120N04-1m7L Description

www.vishay.com SUM120N04-1m7L Vishay Siliconix N-Channel 40 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 40 RDS(on) (Ω) MAX.0.0017 at VGS = 10 V 0.002.

SUM120N04-1m7L Features

* TrenchFET® power MOSFET
* 100 % Rg and UIS tested

SUM120N04-1m7L Applications

* Power supply - Secondary synchronous rectification
* DC/DC converter
* Power tools
* Motor drive switch G D S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage VDS Gate-Source Voltage Contin

📥 Download Datasheet

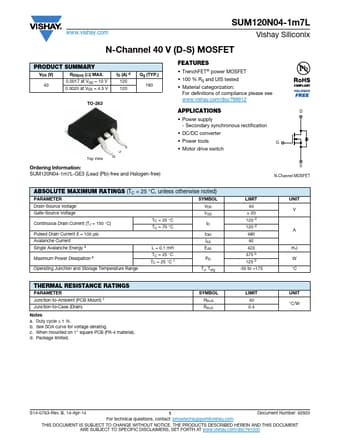

Preview of SUM120N04-1m7L PDF
datasheet Preview Page 2 datasheet Preview Page 3
