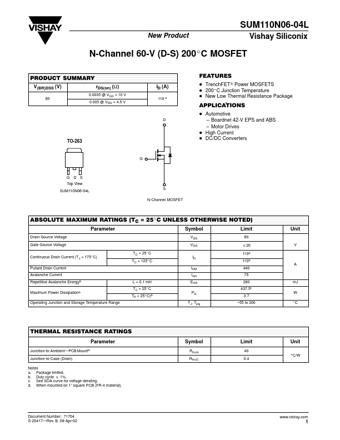

SUM110N06-04L Datasheet, Mosfet, Vishay Siliconix

SUM110N06-04L Features

• Mosfet rDS(on) (W) ID (A) 110 a 0.0035 @ VGS = 10 V 0.005 @ VGS = 4.5 V D TrenchFETr Power MOSFETS D 200_C Junction Temperature D New Low Thermal Resistance Package APPLICATIONS D TO-263

PDF File Details

Part number:

SUM110N06-04L

Manufacturer:

Vishay ↗ Siliconix

File Size:

43.26kb

Download:

📄 Datasheet

Description:

N-channel 60-v (d-s) 200c mosfet.

SUM110N06-04L Application

• Applications D TO-263 D Automotive
    – Boardnet 42-V EPS and ABS
    – Motor Drives D High Current D DC/DC Converters G
