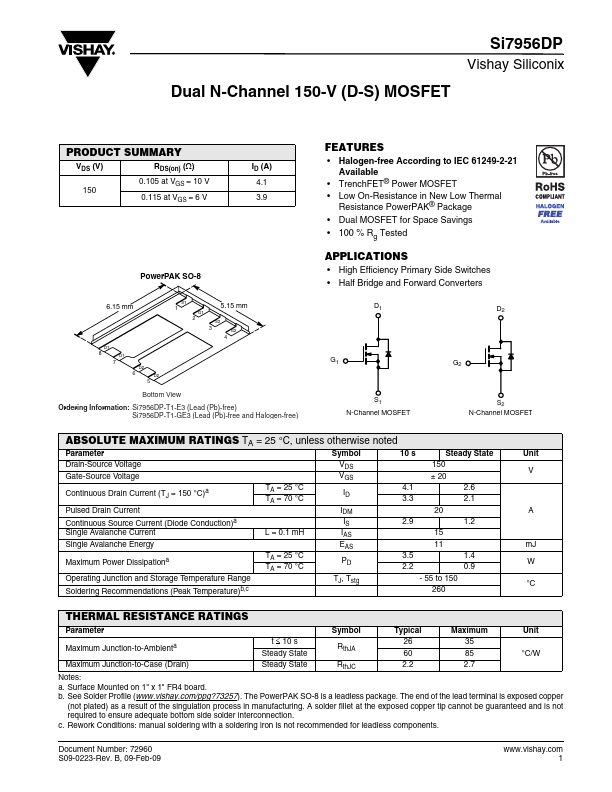

Si7956DP Dual N-Channel 150-V (D-S) MOSFET

Vishay

Description

Si7956DP Vishay Siliconix Dual N-Channel 150-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.105 at VGS = 10 V 150 0.115 at VGS = 6 V ID (A).

📥 Download Datasheet

Si7956DP Datasheet Preview — Preview of Si7956DP PDF

Datasheet Specifications

Part number: Si7956DP
Manufacturer: Vishay ↗
File Size: 385.09 KB
Datasheet: Si7956DP-Vishay.pdf
Description: Dual N-Channel 150-V (D-S) MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Available
* TrenchFET® Power MOSFET
* Low On-Resistance in New Low Thermal Resistance PowerPAK® Package
* Dual MOSFET for Space Savings

Applications

* High Efficiency Primary Side Switches
* Half Bridge and Forward Converters D1 D2 G1 S1 N-Channel MOSFET G2 S2 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol 10 s Steady State Unit Drain-Source Voltage Gate-Source Voltage VD
