SiC32201, Integrated OR-ing Switch

www.vishay.com SiC32201 Vishay Siliconix 0.45 mΩ, Integrated OR-ing Switch With OR-ing Controller, Lossless Current Sense, and Temperature Report D.
The SiC32201 is a highly integrated smart OR-ing solution featuring an advanced lossless current sensing design.

datasheet Preview Page 1 from Datasheet4u.com

SiC32201-Vishay.pdf

SiC32201 Datasheet Preview — Preview of SiC32201 PDF

Datasheet Details

Part number:

SiC32201

Manufacturer:

Vishay ↗

File Size:

792.45 KB

Description:

Integrated OR-ing Switch

Features

* High efficiency - Integrated 0.45 mΩ n-channel current sense MOSFET - Lossless current sense without shunt resistor
* Compact - Integrated current sensing and reporting circuits - Integrated OR-ing control and OR-ing FET driver
* Versatile - Guaranteed precise current repor

Applications

* High availability system power
* N+1 redundant power supplies
* Telecom infrastructure

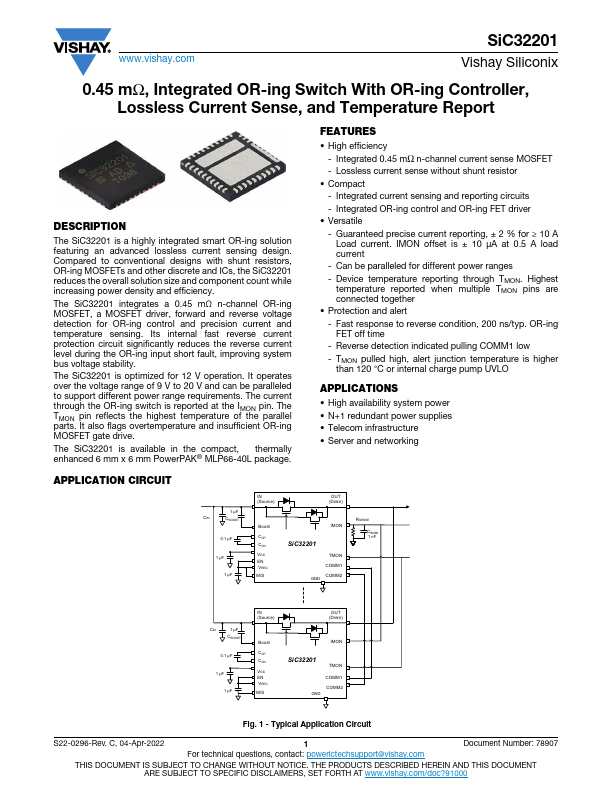

* Server and networking APPLICATION CIRCUIT 1 µF CIN CBOOST 0.1 µF 1 µF 1 µF IN (Source) OUT (Drain) Boost CCP CCN Vcc EN VREG M/S IMON SiC32201 TMON COMM1 COMM2 GND RSE
