SiC660 60A Integrated Power Stage

SiC660 Description

www.vishay.com SiC660, SiC660A Vishay Siliconix 60 A VRPower® Integrated Power Stage .
The SiC660 is a high frequency integrated power stage optimized for synchronous buck applications to offer high current, high efficiency, and high pow.

SiC660 Features

* high current driving capability, adaptive dead-time control, an integrated bootstrap switch, and user selectable zero current detection to improve light load efficiency. The driver is also compatible with a wide range of PWM controllers, supports tri-state PWM, and 5 V and 3.3 V PWM logic. The devic

SiC660 Applications

* to offer high current, high efficiency, and high power density performance with very low shutdown current. Packaged in Vishay’s 5 mm x 5 mm MLP package, SiC660 enables voltage regulator designs to deliver up to 60 A continuous current per phase. The internal power MOSFETs utilize Vishay’s latest Tre

📥 Download Datasheet

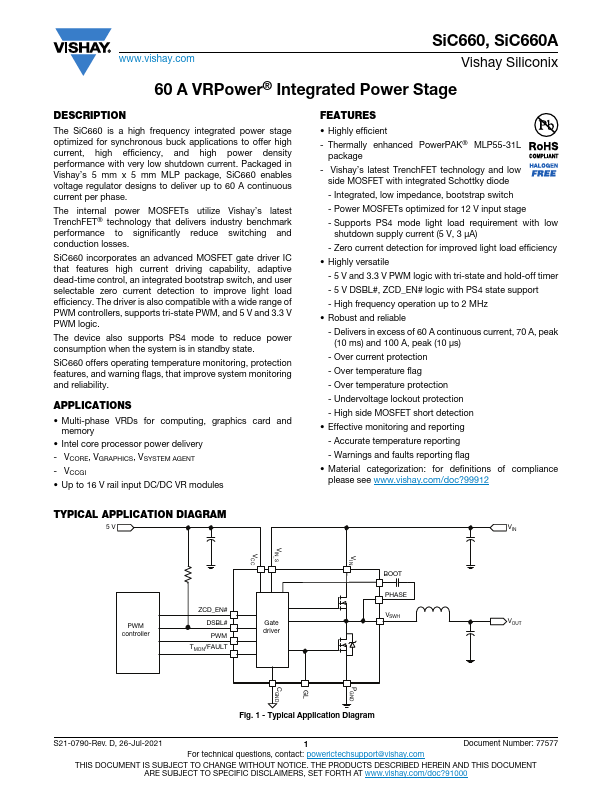

Preview of SiC660 PDF

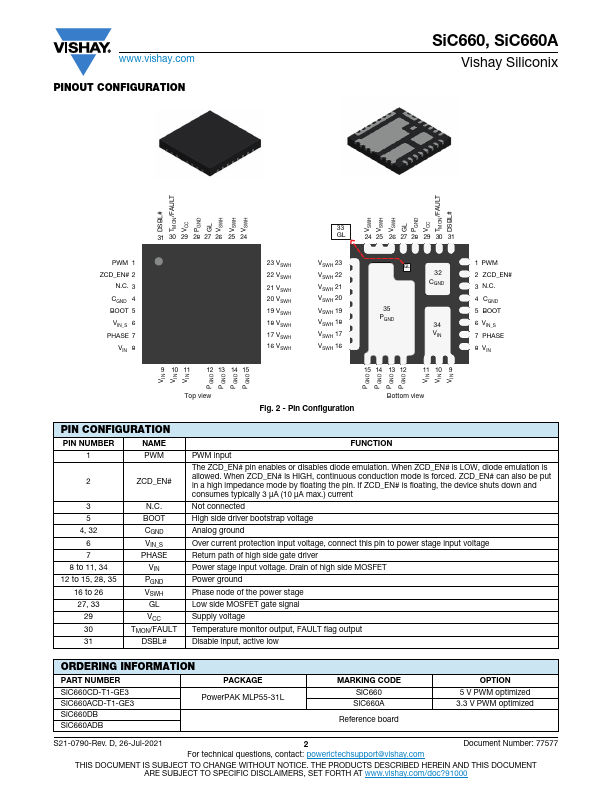

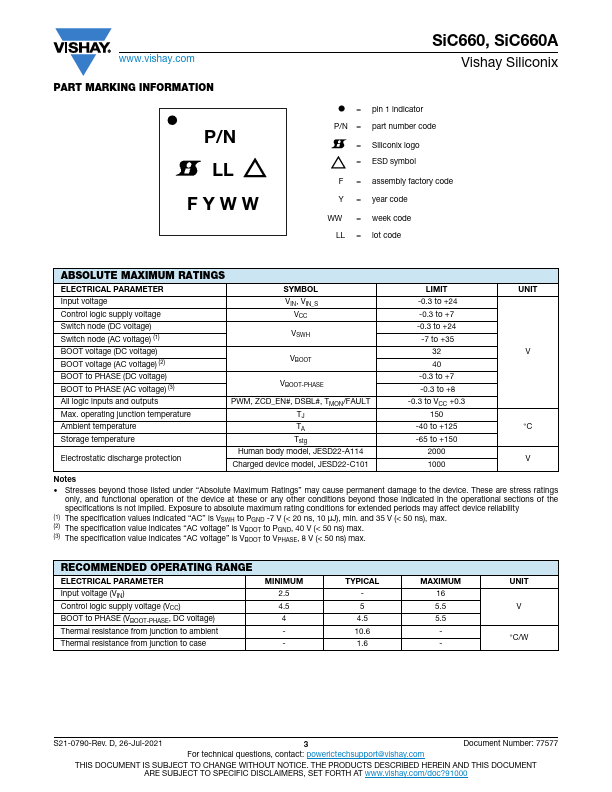

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SiC660
Manufacturer
Vishay ↗
File Size
271.76 KB
Datasheet
SiC660-Vishay.pdf
Description
60A Integrated Power Stage
