SiSS22LDN N-Channel 60V MOSFET

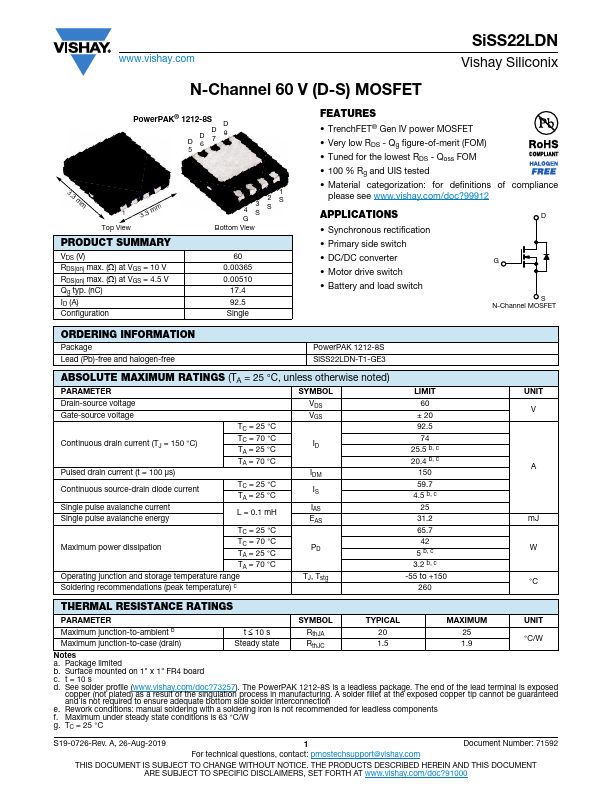

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.vishay.com SiSS22LDN Vishay Siliconix N-Channel 60 V (D-S) MOSFET PowerPAK® 1212-8S D D D 6 D 7 8 5 3.3 mm 1 Top View 3.3 mm PRODUCT S.

📥 Download Datasheet

Preview of SiSS22LDN PDF

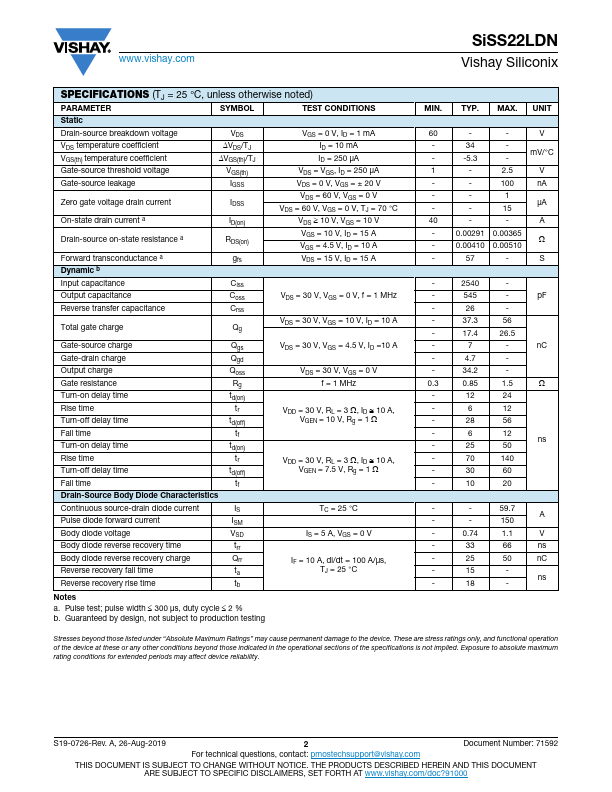

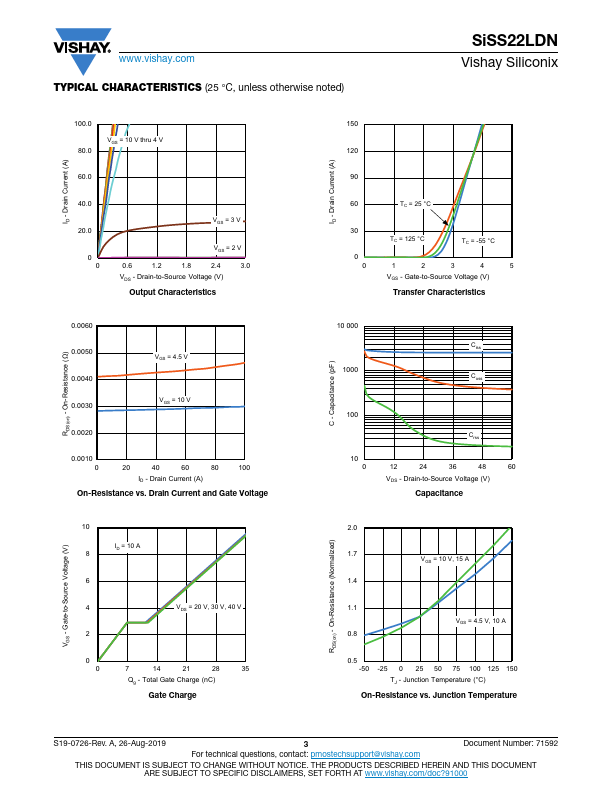

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SiSS22LDN
Manufacturer
Vishay ↗
File Size
192.20 KB
Datasheet
SiSS22LDN-Vishay.pdf
Description
N-Channel 60V MOSFET

Features

* TrenchFET® Gen IV power MOSFET
* Very low RDS - Qg figure-of-merit (FOM)
* Tuned for the lowest RDS - Qoss FOM
* 100 % Rg and UIS tested

Applications

* Synchronous rectification
* Primary side switch
* DC/DC converter
* Motor drive switch
* Battery and load switch D G S N-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-free PowerPAK 1212-8S SiSS22LDN-T1-GE3 ABSOLUTE MAXIMUM RATING
